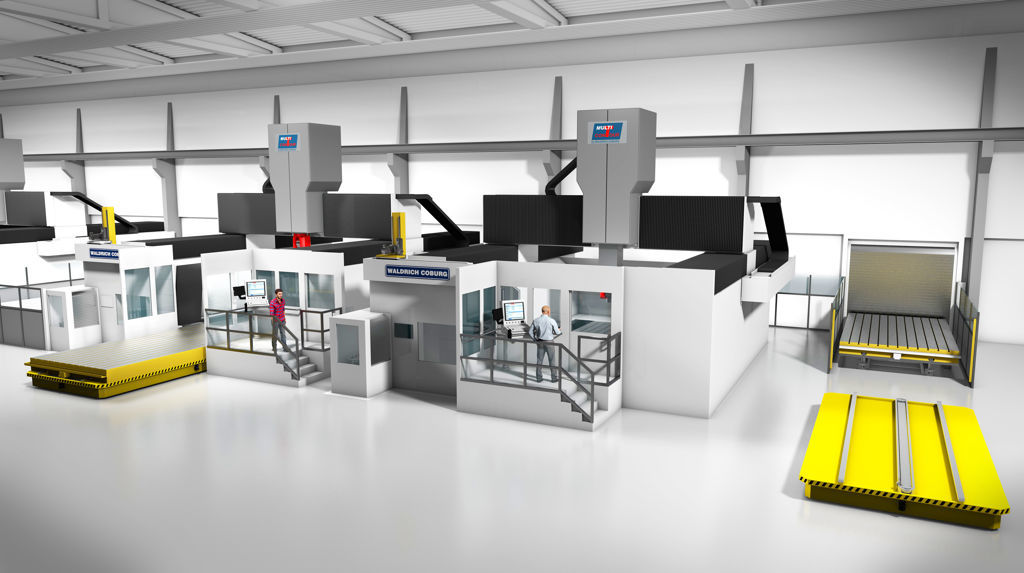

WALDRICH COBURG MultiContour

Name: WALDRICH COBURG MultiContour
SKU: MultiContour
Availability: InStock

Milling Ram [kW]: 45
Length of workpiece [mm]: 3.000 - 50.000
Width of workpiece [mm]: 2.500 - 6.000
Clearance height [mm]: 1.000 - 2.500
Acceleration [m/sec²]: 3

Tillverkare: WALDRICH COBURG

Artikelnr: MultiContour

Kontakta för offert

Customer's benefits

Efficient roughing
Better surface qualities
Highest contour accuracy
Minimum rework

Hydrostatic guideways for X, Y, Z

Ensures highest damping, stiffness and an excellent dynamic behaviour of the machine.
Wearfree guideways
Lowest maintenance effort

Fully automated

Tool changer
Spindle unit changer
Pallet changer
Manufacturing system
Production control

Flexible machine concept

Combination of mechanical spindles and direct driven motor spindles

Mechanical spindle

P: 45 kW
M: 2.000 Nm
n: 6.00 min-¹

Direct driven motor spindle

P: 20 - 50 kW
M: 65 - 300
n: 6.000 - 30.000 min-¹

Available as Double-Bridge-Gantry
Integration in a FMS

Specifikationer

Attribute name	Attribute value
Power [kW]:	45
Length of workpiece max. [mm]:	3000 - 50 000
Width of workpiece [mm]	2.500 - 6.000
Clearance height [mm]:	1.000 - 2.500
Acceleration [m/sec²]	3
