WALDRICH COBURG ValuTurn

Design: Portal design
Turning table:stationary/moveable
Crossrail: stationary/moveable
Swing diameter [mm]: 2,000 - 4,500
Turning height [mm]: 1,000 - 3,000
Rotary table drive power [kW]: 63 - 200
Weight of workpiece [t]: 12 - 25
Tillverkare: WALDRICH COBURG
Artikelnr: ValuTurn
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

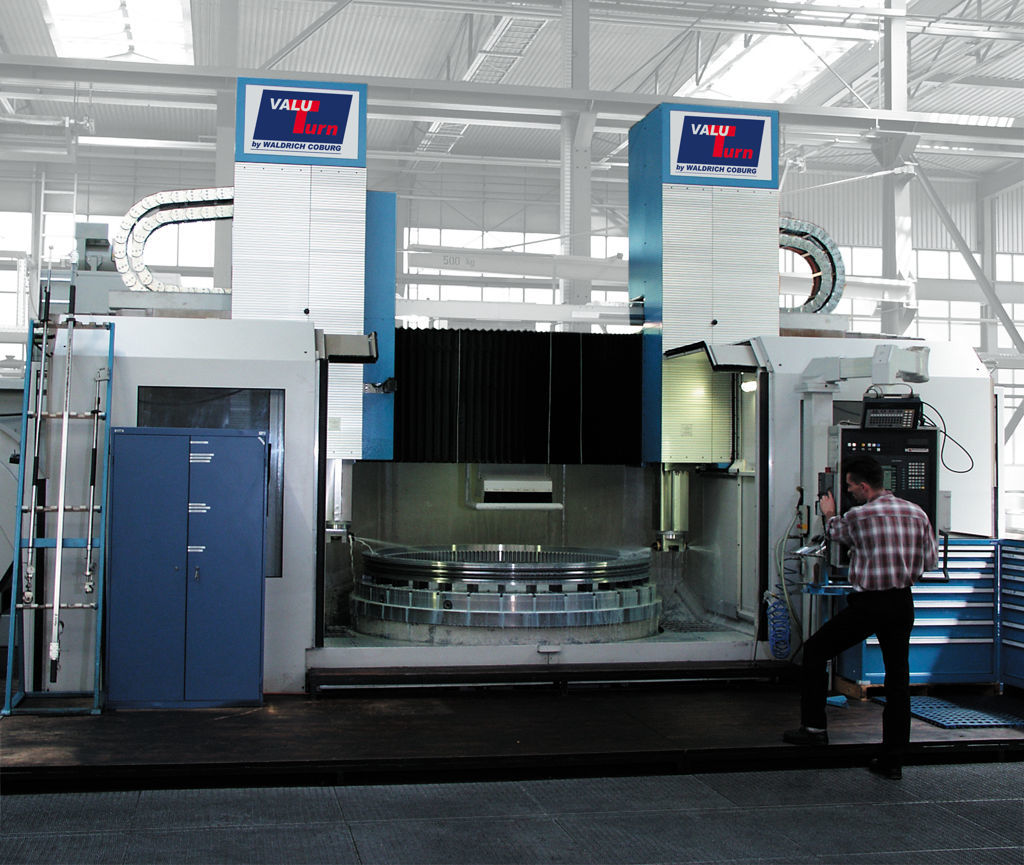

The vertical turning and machining center with a portal design. Together with the foundation, the two columns and the crossrail or cross beam form a closed frame which provides for a high degree of stiffness and accuracy.

The option of a moveable rotary table in addition to a high-efficiency drilling and milling unit even allows the production of complex workpieces requiring offset machining.

A very wide range of tool holders and spindle units ensure the efficient machining of different workpieces. The machining units are interchanged according to the Masterhead concept. Highly developed change systems for machining units and tools are available depending on the requirements.

Specifikationer
Attribute nameAttribute value
DesignPortal design
Turning tablestationary/moveable
Crossrailstationary/moveable
Swing diameter [mm]2,000 - 4,500
Turning height [mm]1,000 - 3,000
Rotary table drive power [kW]63 - 200
Weight of workpiece [t]12 - 25
