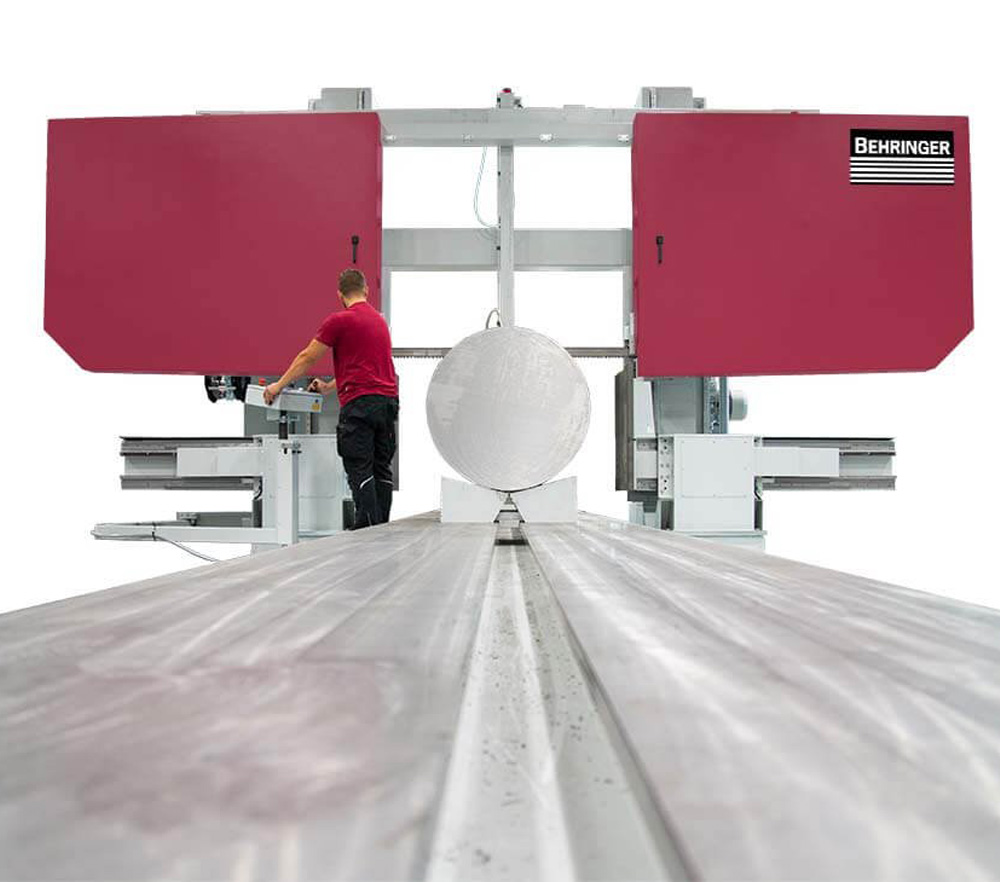

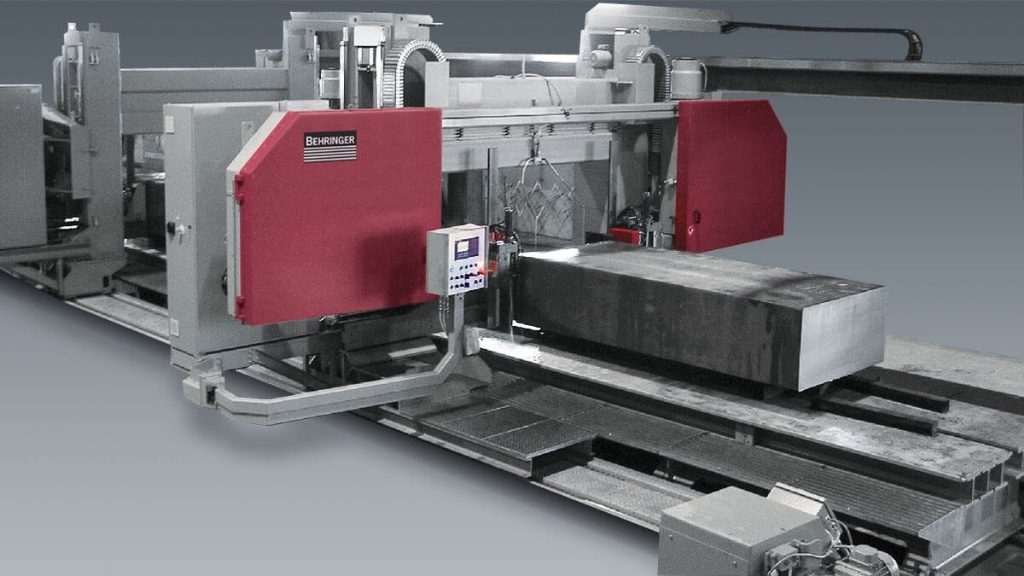

BEHRINGER HBP1500 GANTRY

GANTRY Saw
Cutting range: 1,500 x 1,500 mm
Semi-automatic or automatic operation

Tillverkare: BEHRINGER GmbH

Artikelnr: HBP1500 GANTRY

Product Files

Downloads

BEHRINGER Complete Range

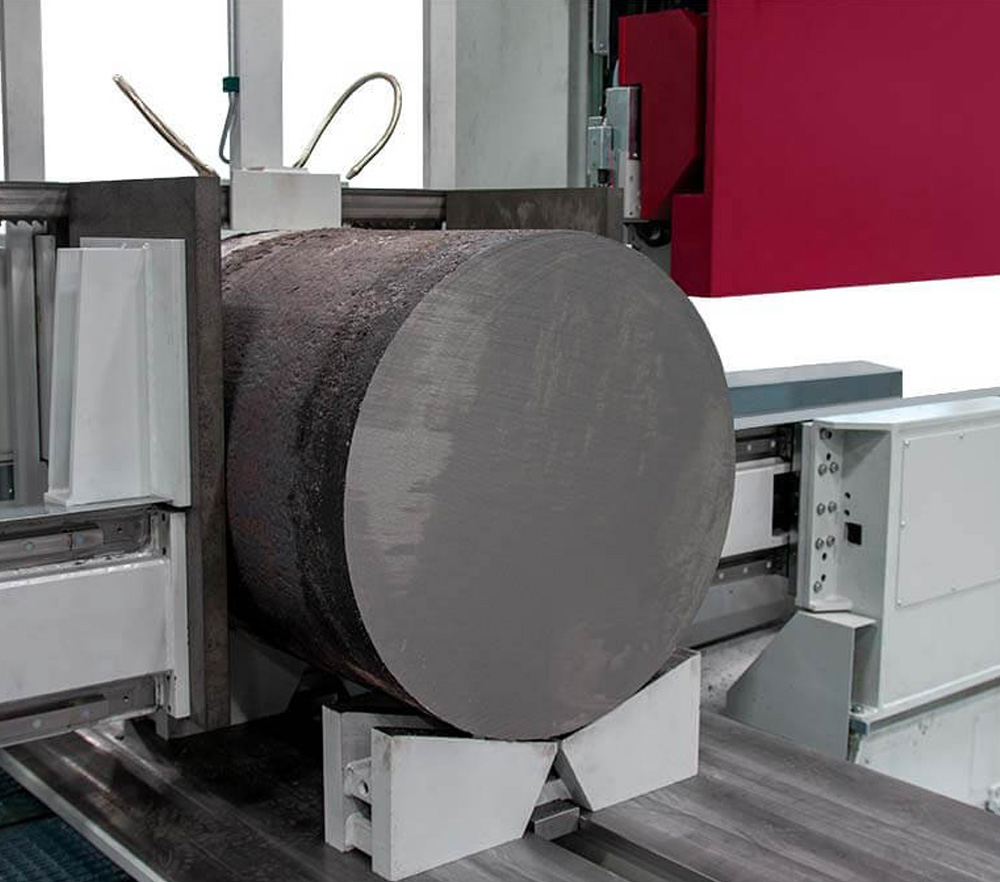

The ultimate cutting machine for cast blocks or freeform forgings

The ultimate cutting machine for cast blocks or freeform forgings – the BEHRINGER GANTRY giants. In forging mills, rolling and gravity die-casting foundries, and steel finishing works, these machines provide the ideal answer for dealing with large dimensions. They are the perfect large bandsaws for preproduction in tool and mold making factories, helping to save valuable milling time. Loading in parallel is thus just as possible as relieving the crane capacity by placing several parts in parallel.

Specifikationer

Attribute name	Attribute value
Cutting Range
Cutting range 90° round	1,500 mm
Cutting range 90° flat	1,500 x 1,500 mm
Smallest dimension to be sawn round	400 mm
Smallest dimension to be sawn flat	400 x 50 mm
Performance Characteristics

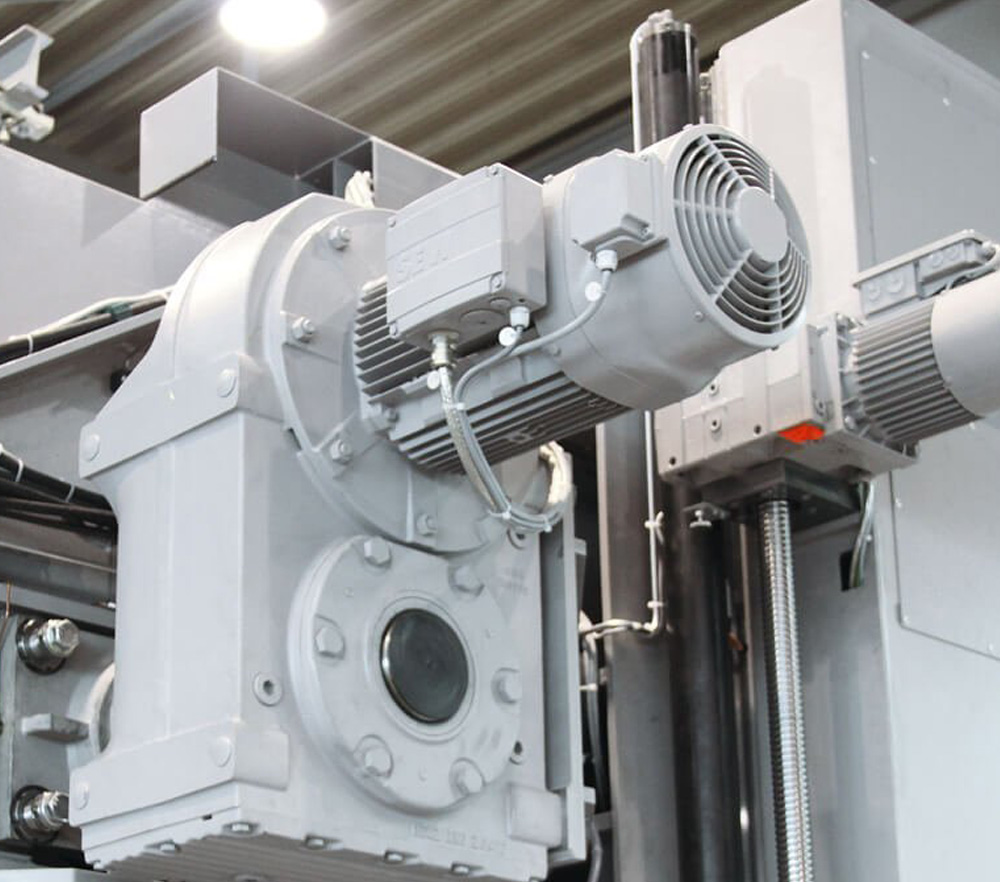

Drive power	15 kW
Blade speed	8 - 84 m/min
Saw blade dimensions	14,830 x 80 x 1.6 mm
Total power	30 kW
Table size L x W	6,500 x 1,200 mm
Travel way of the portal (horizontal)	5,000 mm
Travel way of the portal (vertical)	1,600 mm
Dimensions and Weight
Lenght	11,600 mm
Width	7,800 mm
Height	4,200 mm
Weight	33,000 kg
