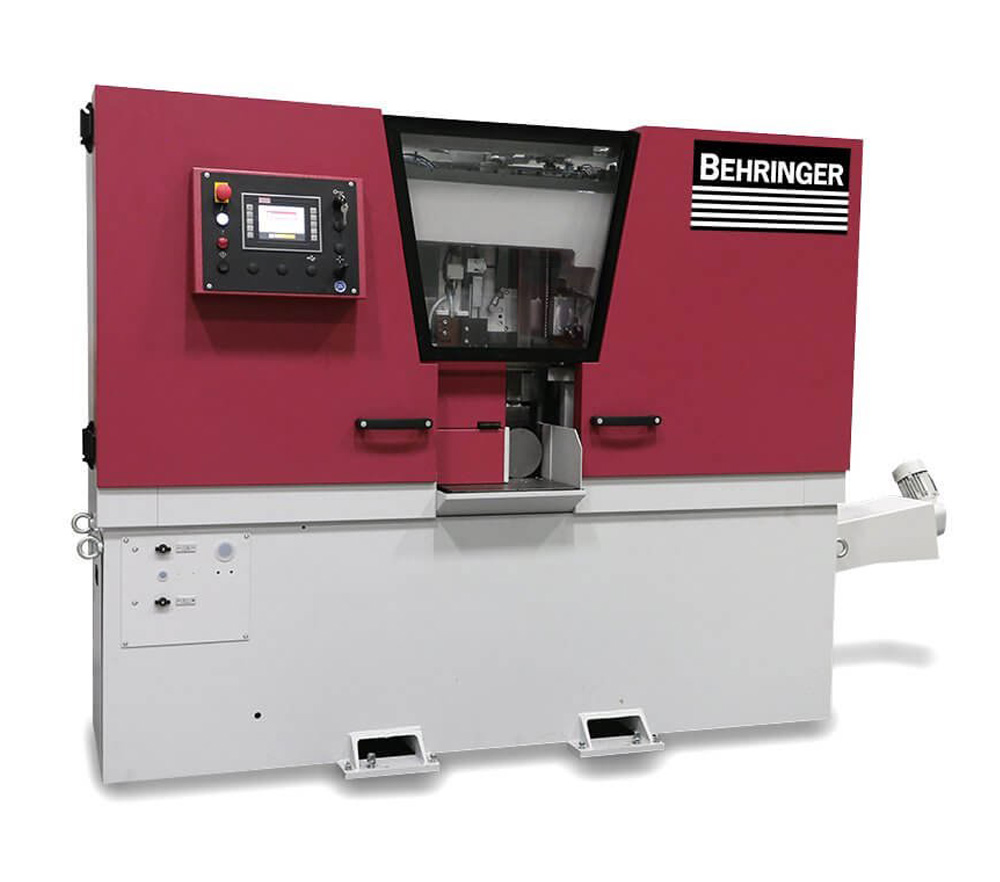

BEHRINGER HBE321A Dynamic

Kapkapacitet 90° rund (mm) : 320
Kapkapacitet 90° platt (B x H i mm) : 350x320
Tillverkare: BEHRINGER GmbH
Artikelnr: HBE321A
Product Files

The automatic bandsaw offers powerful, accurate cuts with low costs per cut

The automatic band saw HBE321A Dynamic from BEHRINGER is designed for economical use in industry and the steel trade. It offers high-performance saw cuts with simultaneously low cutting deviations in easy to difficult-to-machine metals and plastics. In doing so, the band saw covers a wide range of materials from profiles and tubes to solid material. Thanks to its wide-opening full enclosure, the automatic band saw HBE321A Dynamic offers uncompromising work protection combined with good accessibility. Its low energy consumption contributes to resource-saving production.

Specifikationer
Attribute nameAttribute value
Cutting Range
Cutting range 90° round320 mm
Cutting range 90° flat350 x 320 mm
Smallest dimension to be sawn round10 mm
Smallest dimension to be sawn flat10 x 8 mm
Performance Characteristics
Feeding length single stroke 650 mm
Drive power2.6 kW
Blade speed15 - 110 m/min
Saw blade dimensions4,440 x 34 x 1.1 mm
Total power3.7 kW

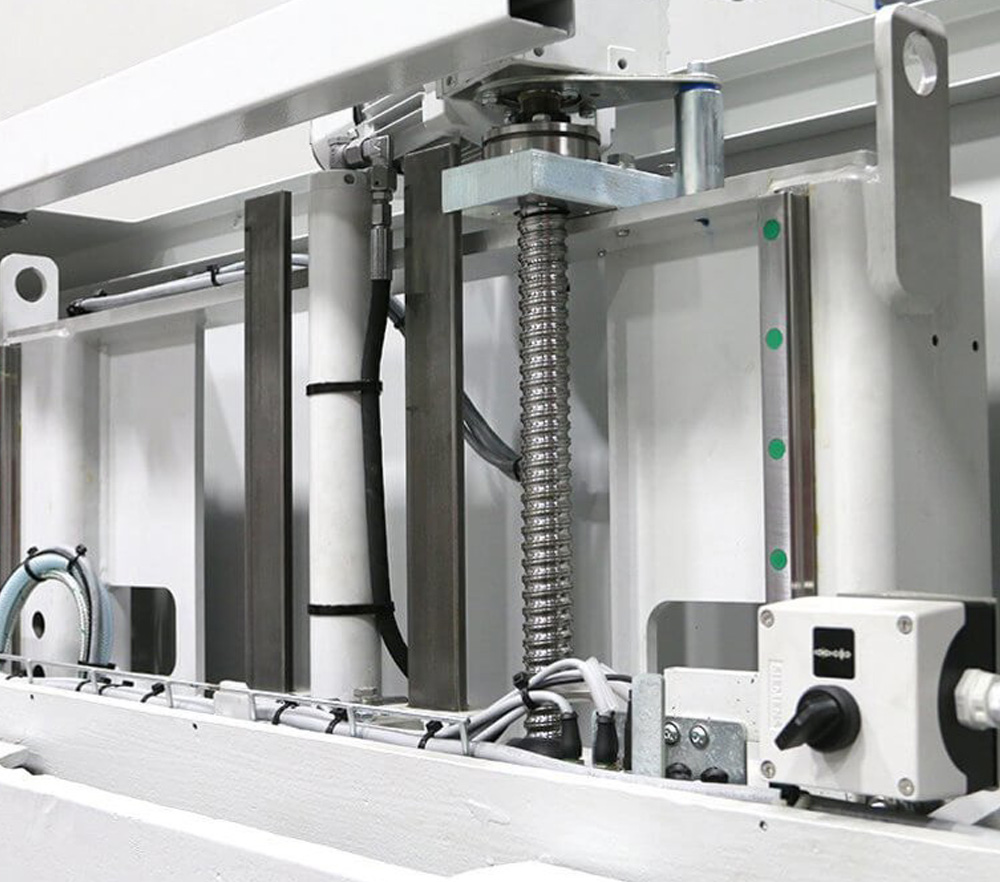

Saw feed servo-feed via ball screw
Material feedball screw
Material clampinghydraulic
Dimensions and Weight
Lenght1,850 mm
Width2,300 mm
Height1,820 mm
Weight1,900 kg
Material support height800 mm
