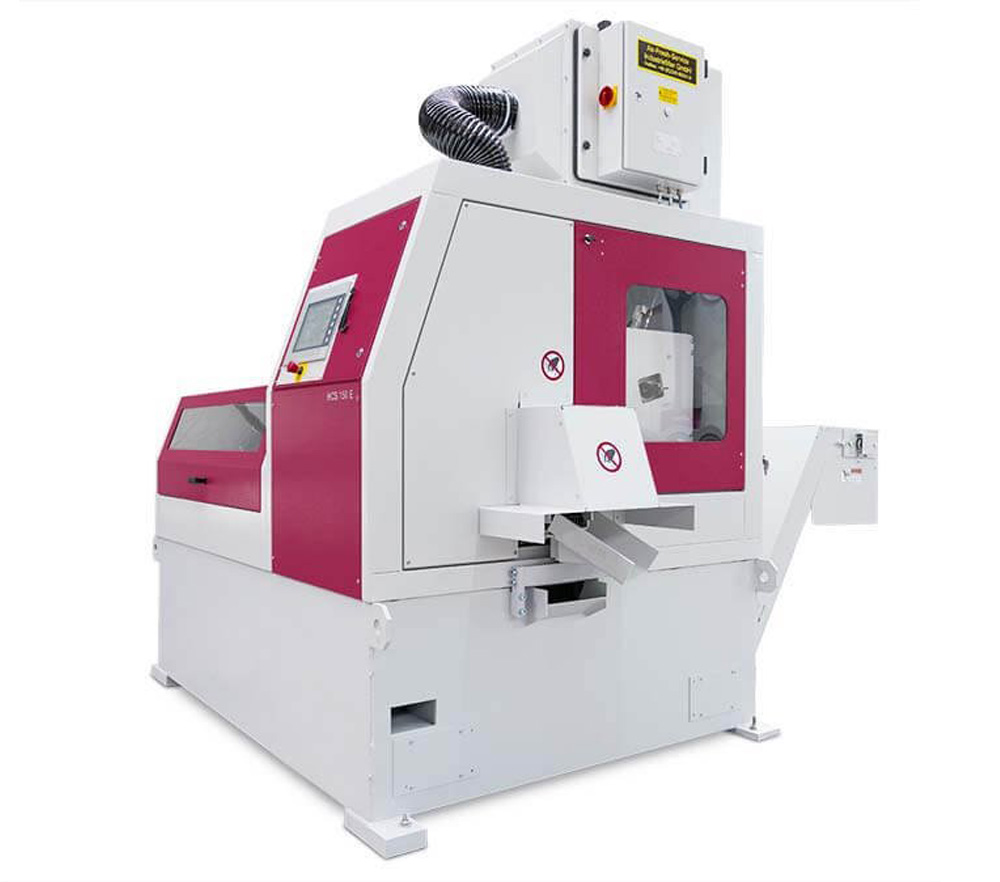

BEHRINGER EISELE HCS 150 E

High Speed Circular Saw: The large all-rounder
Cutting range Ø 152,4 mm
Saw blade diameter
360 / 420 / 460 mm
Automatic operation

Tillverkare: BEHRINGER EISELE GmbH

Artikelnr: HCS 150 E

Product Files

Downloads

BEHRINGER Complete Range

The all-rounder for steel trade and industry

The high-performance automatic circular saws of the HCS-E series are specialists for highest cutting performance and premium quality, which quickly pay for themselves in multi-shift operation. The basis of the extreme performance is the unique, extremely stable and solid construction with perfectly matched components and state-of-the-art drive technology.

Specifikationer

Attribute name	Attribute value
Cutting Range
Cutting range 90° round	10 - 152,4 mm
Cutting range 90° square	10 x 10 mm - 130 x 130 mm
Performance Characteristics
Drive power	15 kW
RPM	24 - 259 min-1
Saw blade diameter	360 / 420 / 460 mm
Feeding length single stroke	1.000 mm
Feed rate	1.250 mm/s
Saw feed	servo-driven
Material clamping	hydraulic
Saw drive	frequency-controlled
Dimensions and Weight
Lenght	2,550 mm
Width	1,900 mm
Height	2,000 mm
Weight	3,200 kg
Material support height	1,170 mm
