BEHRINGER EISELE PSU 450 M

Automatic Mitre Circular Saw
Cutting range: 240 x 70 mm
Saw blade Ø 450 mm
90° up to 30° mitre angle

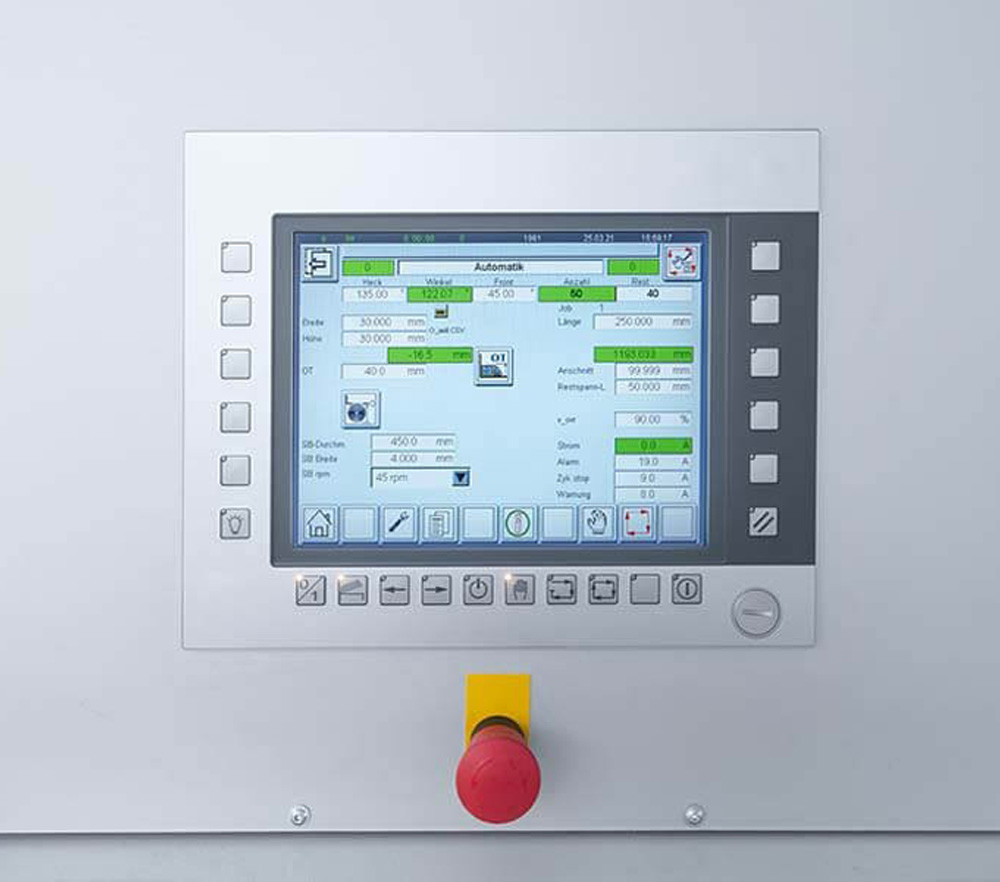

Automatic operation

Tillverkare: BEHRINGER EISELE GmbH

Artikelnr: PSU 450 M

Product Files

Downloads

BEHRINGER Complete Range

Provides precise mitre cuts in various industry and workhops

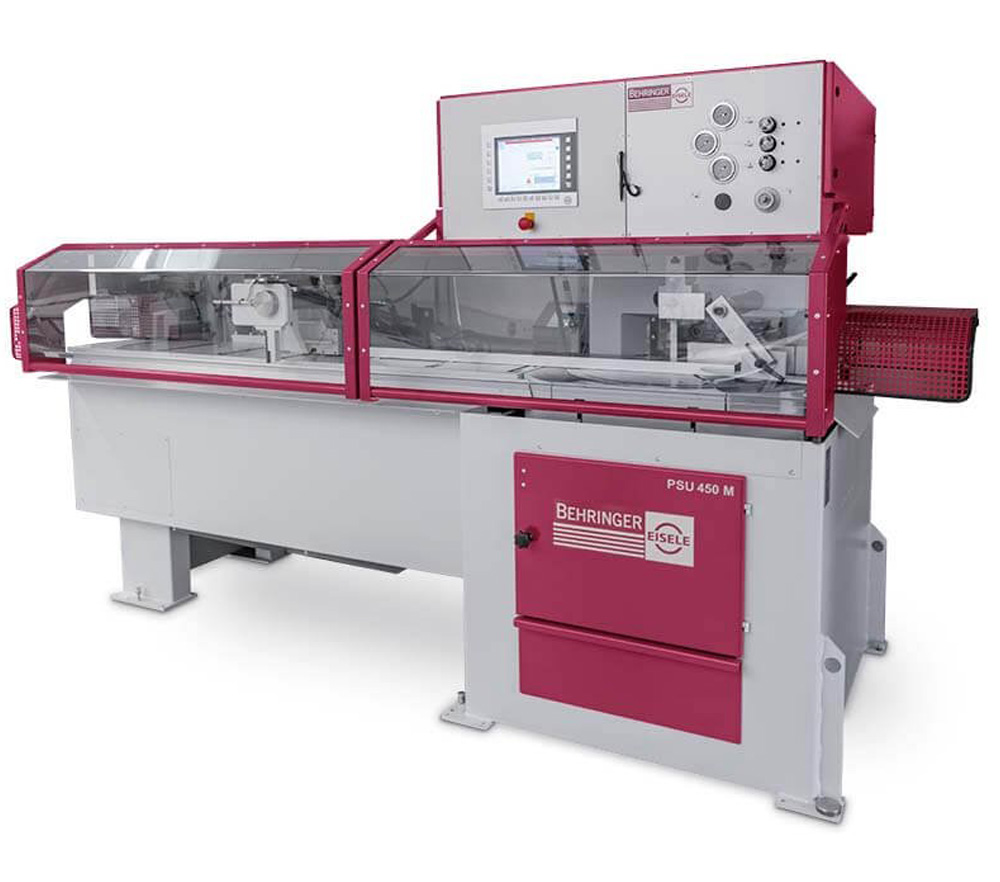

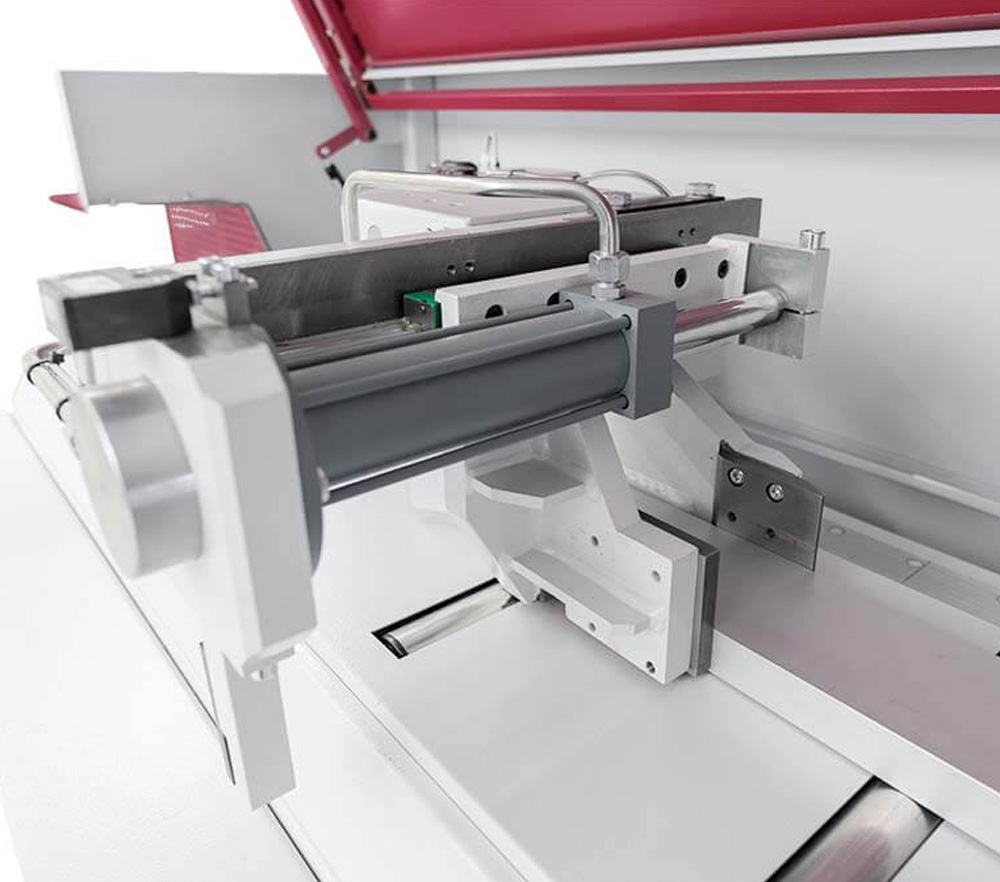

The automatic mitre circular saw PSU 450 M is a true all-rounder for cutting tubes, profiles, solids and angles. Impressive features include its high output, process reliability and simple handling. Its automatic mitre adjustment and servo motor-driven feed gripper make for extreme flexibility in this outstanding saw machine concept. Its modular structure allows the PSU 450 M to be combined with infeed magazines or disposal devices.

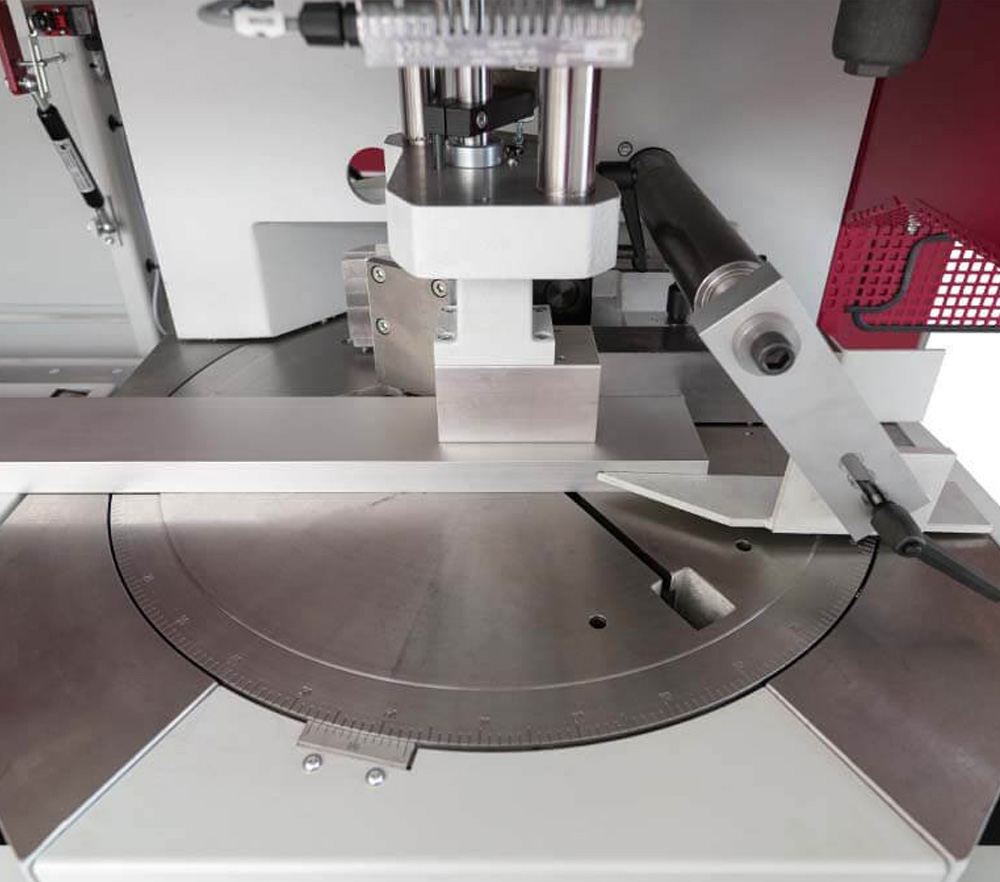

The heart of the PSU mitre saw unit is the worm gear unit with EISELE shock-absorbing feature, produced in-house. It is heavy duty and provides for a smooth, low-vibration running of the saw, which, of course, has a positive impact on the quality of the cutting surface and the blade life.

Technical Data

Model			PSU 450 M convenience package
Cutting range
Flat	90°	[mm]	220 x 70
Flat	45°	[mm]	180 x 50
Flat	30°	[mm]	120 x 50
Square	90°	[mm]	10 - 140
Square	45°	[mm]	10 - 125
Square	30°	[mm]	10 - 100
Rund	90°	[mm]	10 - 150
Round	45°	[mm]	10 - 145
Round	30°	[mm]	10 - 120
Saw blade diameter		[mm]	450
Drive power		[kW]	3,0 / 3,61]
RPM standard		[min-1]	6 / 12 / 24 / 48
RPM optional		[min-1]	12 / 24 / 48 / 96
RPM optional kw		[min-1]	6 - 401]
Feeding length single stroke		[mm]	1500
Feeding rate		[mm/s]	500
Weight approx.		[kg]	2350

1] PSU 450 M with convenience package - 7,1 kW
