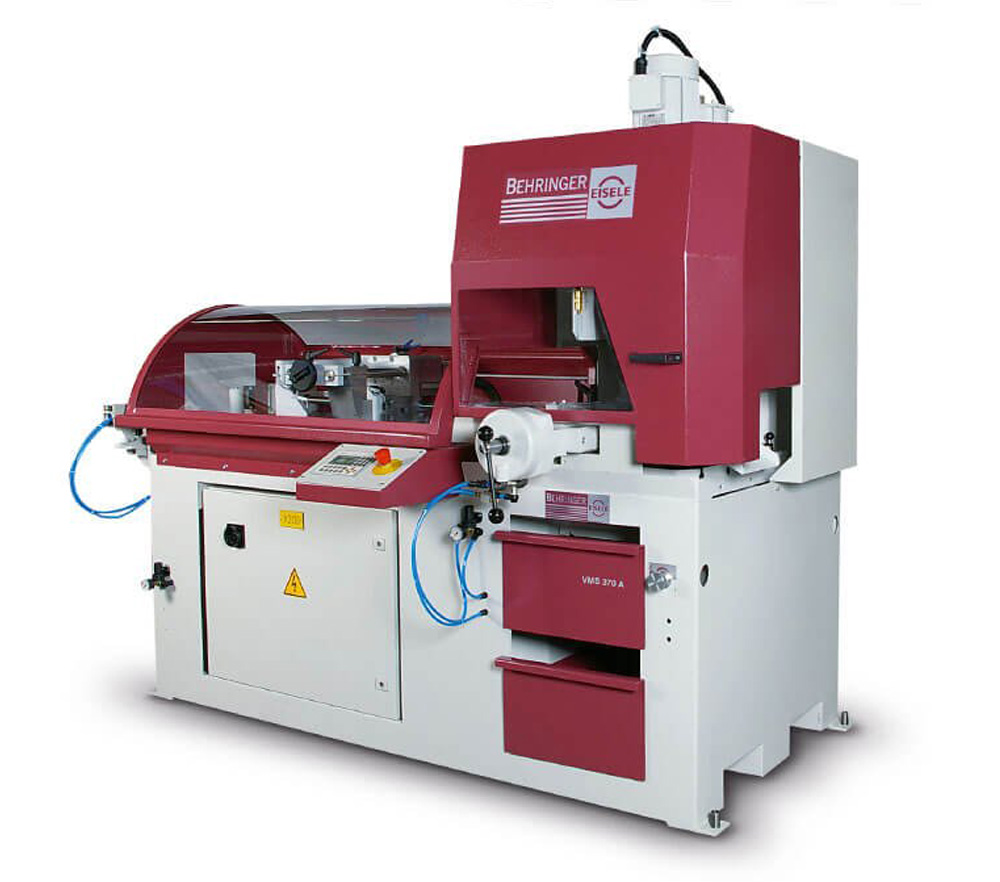

BEHRINGER EISELE VMS 400 A

Automatic Cold Saw
Cutting range: 200 x 120 mm
Saw blade Ø 400 mm
Saw feed: hydraulic
Tillverkare: BEHRINGER EISELE GmbH
Artikelnr: VMS 400 A
Product Files

The entry into the world of automatic circular saws

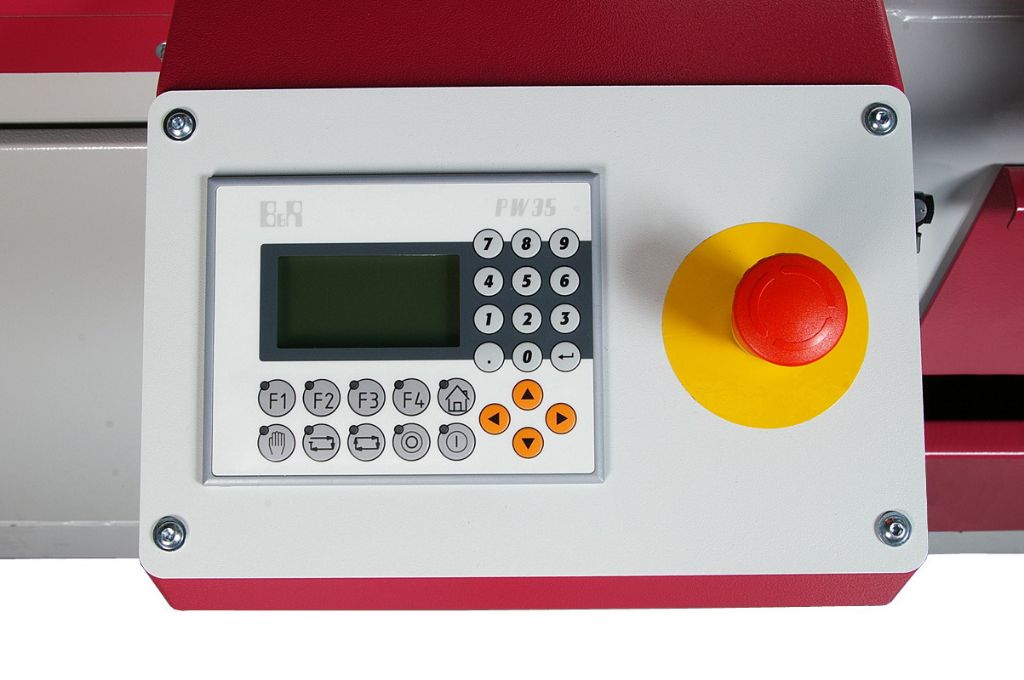

More than 250,000 cold saws sold worldwide speak for themselves. Simple operation, robust design and precise cuts make the metal-cutting cold saws of the VMS series a reliable partner in the workshop and factory. They are real all-rounders when it comes to cutting solid materials, tubes and profiles - both for series cuts and in manual operation. The VMS 400 A offers automatic operation with hydraulic saw feed and hydraulic material clamping. The system is operated via a user-friendly NC control.

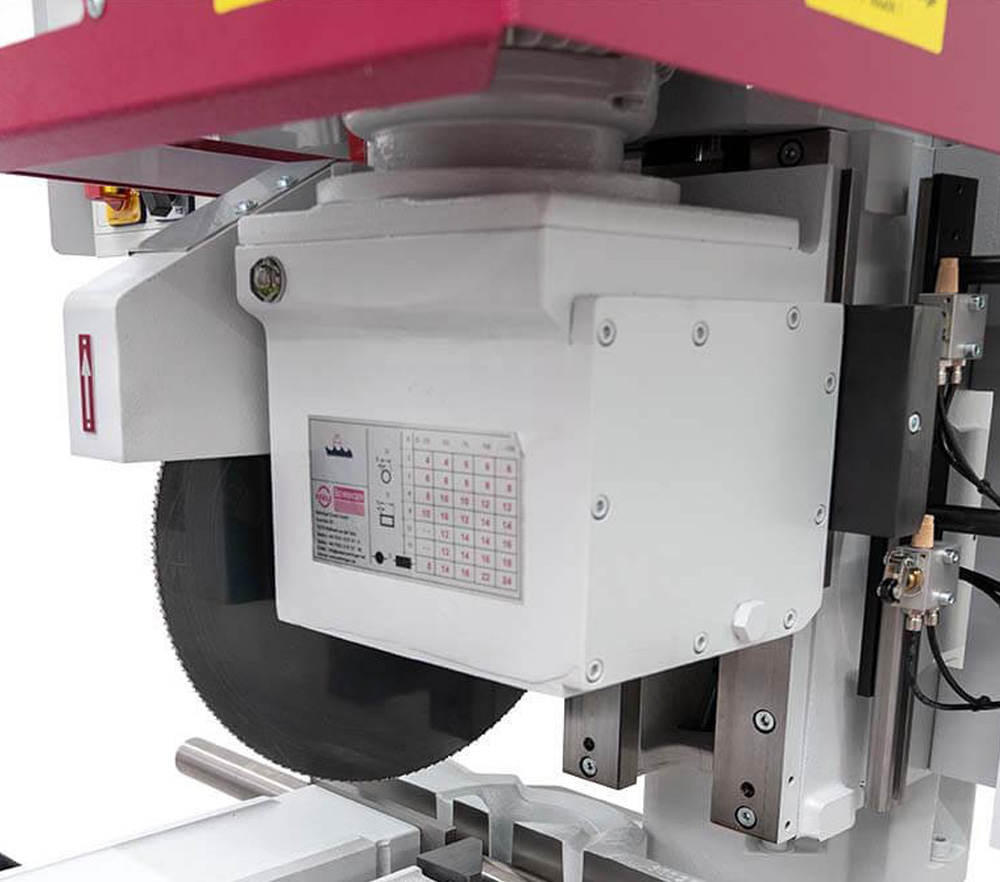

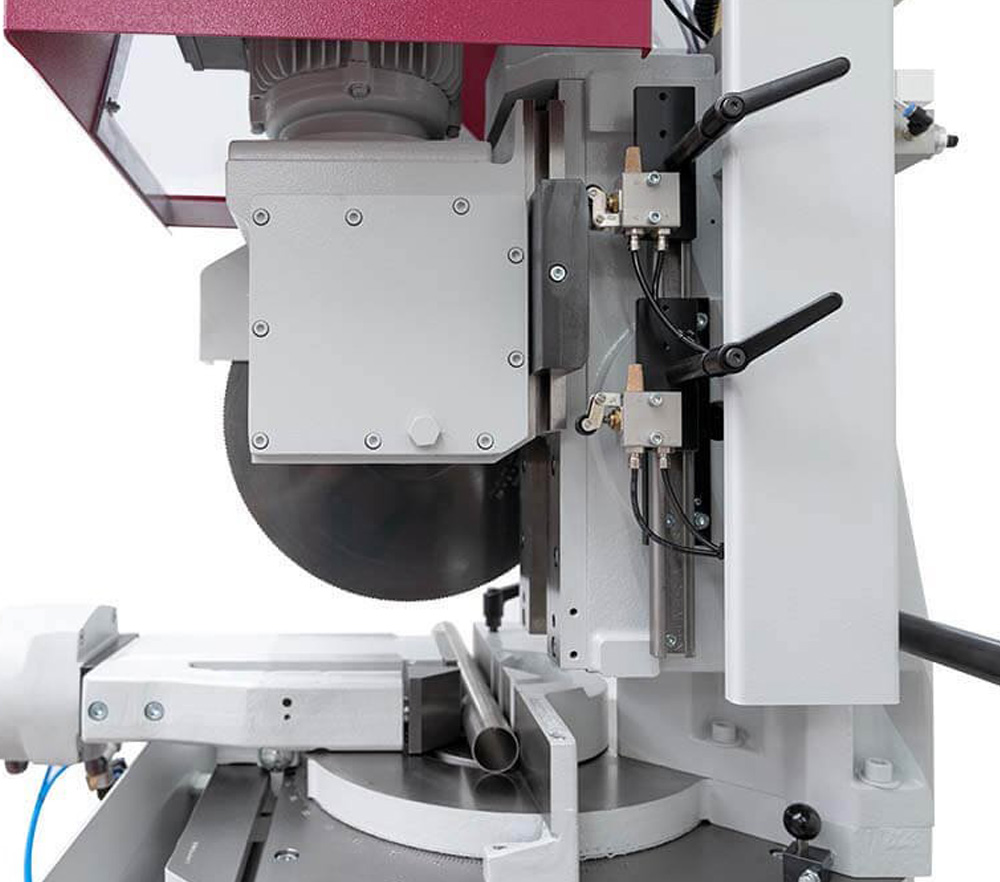

The heart of the VMS saw unit is the worm gear unit with EISELE shock-absorbing feature, produced in-house. It is heavy duty and provides for a smooth, low-vibration running of the saw, which, of course, has a positive impact on the quality of the cutting surface, the blade life and the service life of the saw.

Specifikationer
Attribute nameAttribute value
Cutting Range
Flat 90°200 x 120 mm
Flat 45°140 x 120 mm
Flat 30°100 x 100 mm (Only to the right side)
Square 90° 120 mm
Square 45° 120 mm
Square 30° 100 mm (Only to the right side)
Round 90° 140 mm
Round 45° 140 mm
Round 30°110 mm (Only to the right side)
Performance Characteristics
Feeding length single stroke 800 mm
Drive power2.0 / 2.6 kW
RPM standard17 / 34 - 34 / 68 min-1
RPM optional 8 / 16 / 32 / 64 min-1
Saw blade diameter400 mm
Saw feed hydraulic

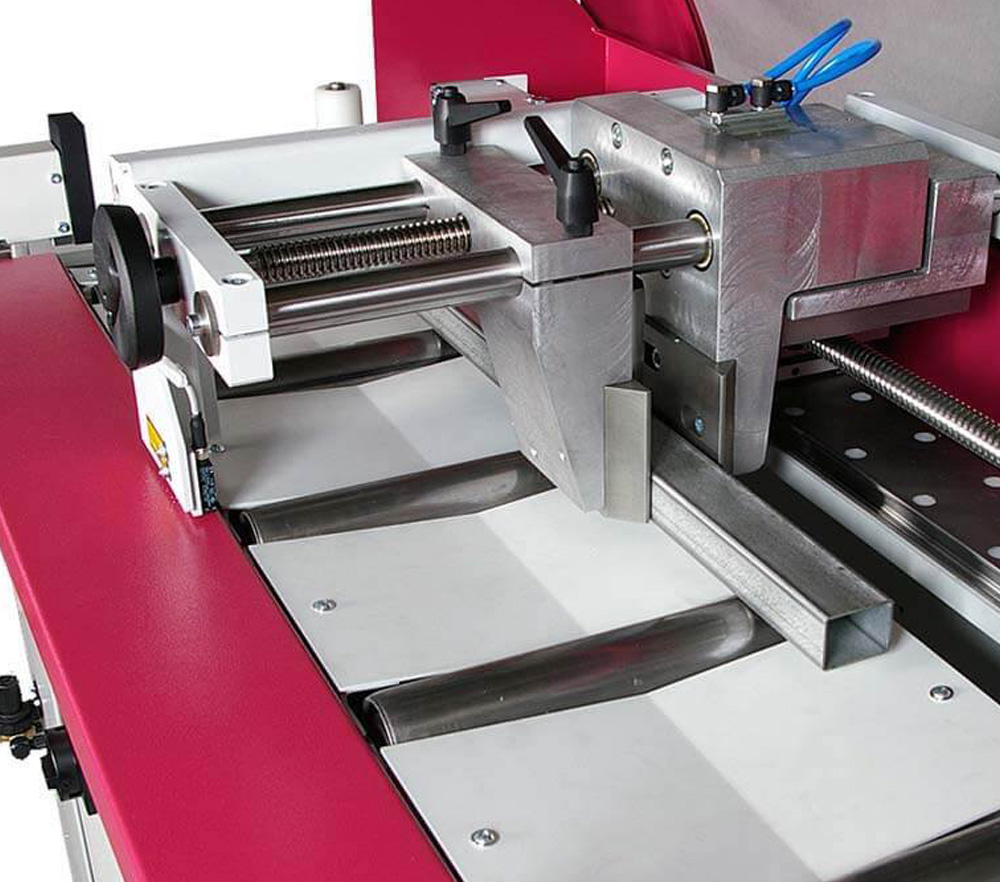

Material feedball screw
Material clampinghydraulic
Dimensions and Weight
Lenght3,100 mm
Width1,500 mm
Height2,000 mm
Weight1,350 kg
Material support height920 mm
