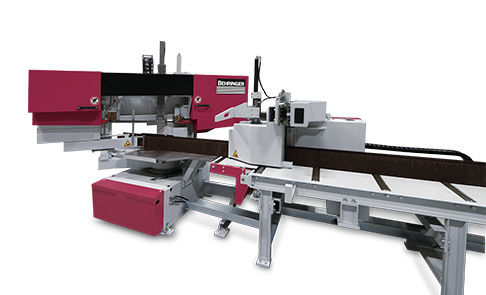

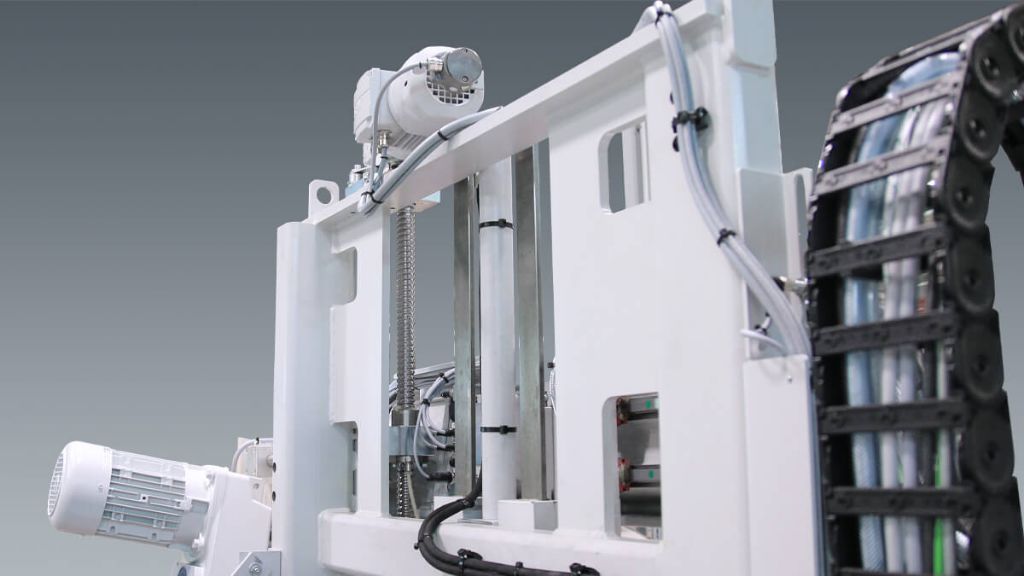

BEHRINGER HBE320-523GA

Cutting range: 1,250 x 610 mm
34 mm saw blade

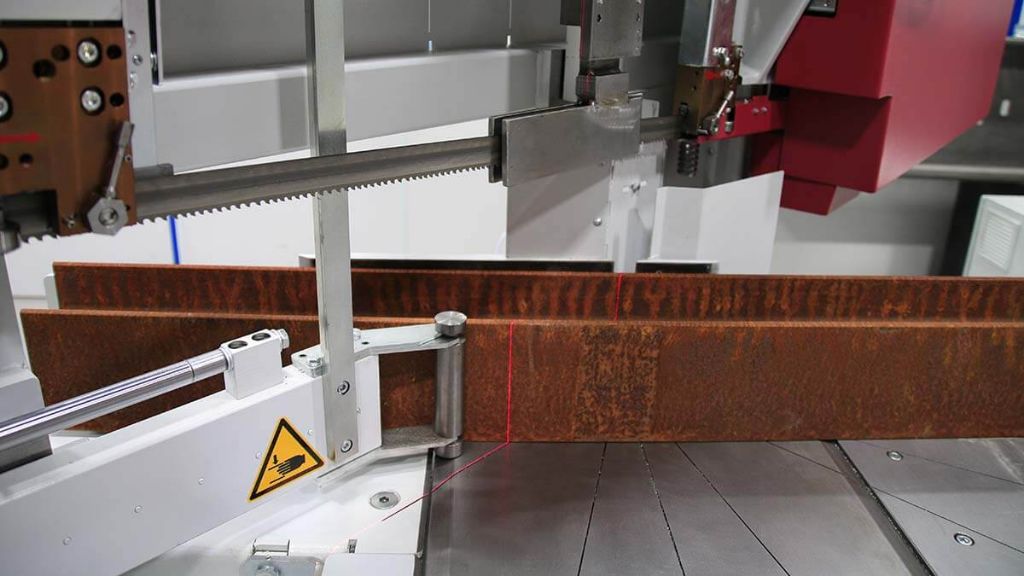

For light to medium profiles with feeding gripper
Manufacturer: BEHRINGER GmbH
SKU: HBE320-523GA
Product Files

For precise mitre cuts in metal construction, sectional steel trade and mechanical engineering

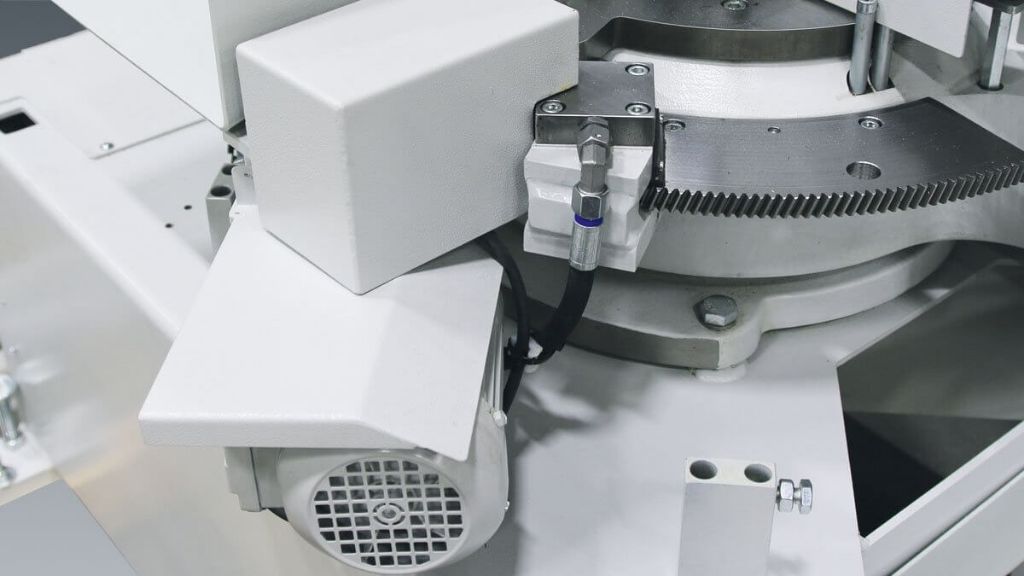

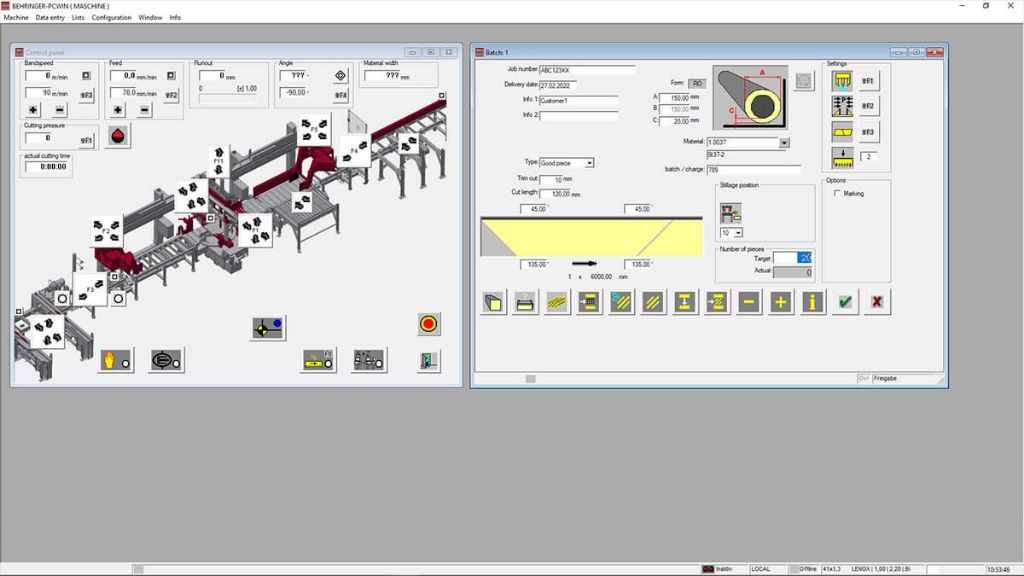

The automatic mitre band saw HBE320-523GA scores with high cutting performance, user-friendliness and precision. It cuts profile steels, tubes and solid materials made of steel or stainless steel at almost any angle. Thanks to the precise feed gripper and fast, NC-controlled cutting angle adjustment, it is fully automatic. Thanks to the standard saw feed with servo drive and unique BEHRINGER cutting pressure control, it is up to twice as fast when sawing shaped steel as conventional saws at the same price level. With its powerful PC control, the computerized mitre saw is already prepared for the attachment of material handling equipment.

Products specifications
Attribute nameAttribute value
Cutting range 90° round [mm]320
Cutting range 90° flat [W x H in mm]520 x 320
Mitre left 45° flat W x H (mm)390 x 320
Mitre left 30° flat W x H (mm)200 x 320
Mitre right 45° flat W x H (mm)330 x 320
