BEHRINGER LPS-TA

Cutting height: 600 mm
Cutting width: 620 mm
Cutting length: 1,270 mm
Automatic operation
Manufacturer: BEHRINGER GmbH
SKU: LPS-TA
Product Files

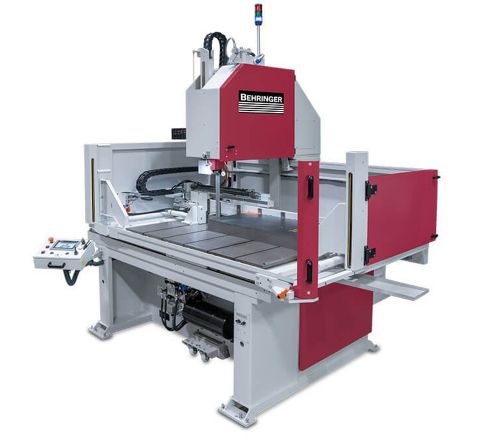

The automatic plate saw - ideal for steel trade and industry

The automatic table band saw LPS-TA is the ideal solution from BEHRINGER when it comes to fully automatic cutting of small plates and blocks. By producing flat and rectangular material from sheets, advantages can be achieved in material purchasing and significantly reduced storage costs. With its movable support table and automatic positioning device, it can be easily loaded and unloaded by crane. After clamping the material in the gripper and entering the plate dimensions, the table bandsaw sets itself up automatically. Even with difficult to cut materials, the automatic plate saw LPS-TA ensures precision and speedy work.

Products specifications
Attribute nameAttribute value
Cutting Range
Cutting length1,520 mm
Cutting width 620 mm
Cutting height 400 mm
Minimum cutting width10 mm
Minimum cutting height 15 mm
Performance Characteristics
Drive power4 kW
Blade speed17 - 120 m/min
Saw blade dimensions5,730 x 41 x 1.3 mm
Total power6 kW
Material feeding length600 mm
Supporting area inside table1,540 x 620 mm
Supporting area outside table1,540 x 640 mm
Maximum table load3,000 kg
Dimensions and Weight
Lenght4,250mm
Width3,450 mm
Height3,200 mm
Weight4,000 kg
Material support height1,200 mm
