BEHRINGER HBE411A Dynamic - copy

Cutting range 90° round (mm) : 410
Cutting range 90° flat (W x H in mm) : 510x410
Manufacturer: BEHRINGER GmbH
SKU: HBE411A-copy
Product Files

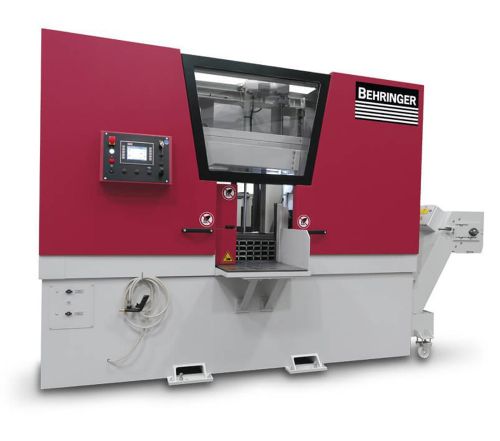

The automatic band saw HBE411A Dynamic from BEHRINGER is designed for economical use in industry and the steel trade. It offers high-performance saw cuts with simultaneously low cutting deviations in easy to difficult-to-machine metals and plastics. In doing so, the band saw covers a wide range of materials from profiles and tubes to solid material. Thanks to its wide-opening full enclosure, the automatic band saw HBE411A Dynamic offers uncompromising work protection combined with good accessibility. Its low energy consumption contributes to resource-saving production.

Products specifications
Attribute nameAttribute value
Saw blade dimension (mm)5.730x41x1,3
Rest piece length in automatic operation80 mm
Blade speed (m/min)15-110
Power of saw drive (kW) - frequency regulated3,8
Material support height (mm)800
Weight approx. (kg)3200

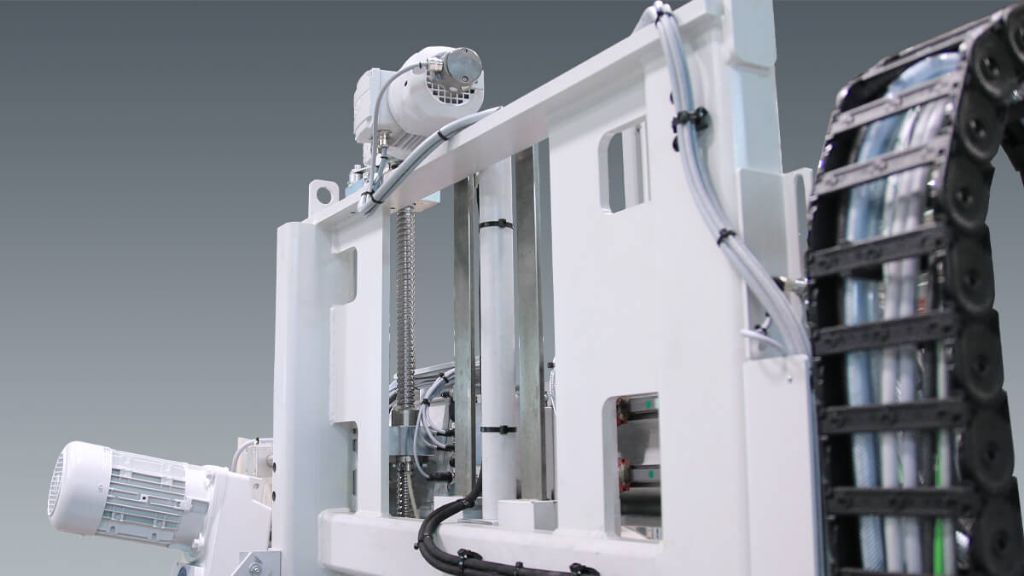

Saw feedServo-feed via ball screw
Cutting range 90° round [mm]410
Cutting range 90° flat [W x H in mm]510x410
Material feeding length (mm)640

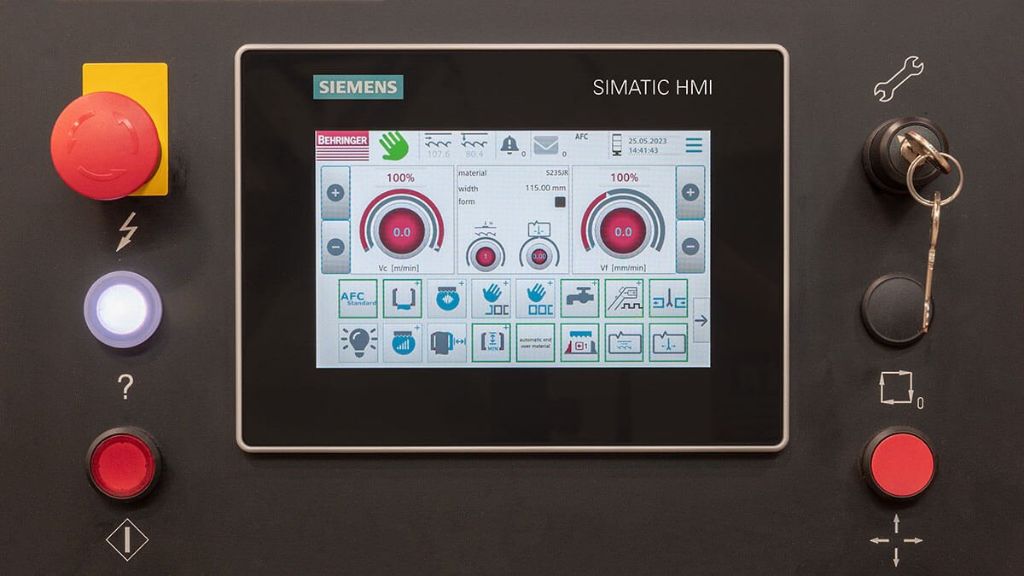

CNC-Program ControlsBT65 (Standard)
Sawblade bias 1°Standard
Automatic band guide adjustmentStandard
