BEHRINGER Automatic Horizontal Bandsaws HBE Dynamic series

Automatic Horizontal Bandsaws HBE Dynamic Series

Powerful, accurate cuts with low costs per cut

The all-rounder for any material. The new BEHRINGER HBE Dynamic series combines essential efficiency features in a modern high-performance bandsaw machine: Increased performance while reducing energy consumption, low space requirements, comprehensive occupational safety and the best operator friendliness.

The HBE Dynamic series brings many features, which make your production even more profitable:

  • Solid and durable construction made of vibration damping grey cast iron
  • Sensitive BEHRINGER downfeed control system
  • Precise guiding system in portal design
  • Energy-efficient drive system
  • Excellent accessibility
  • Electrically driven chip brush, synchronized with blade speed
  • Easy operation by intuitive NC control system

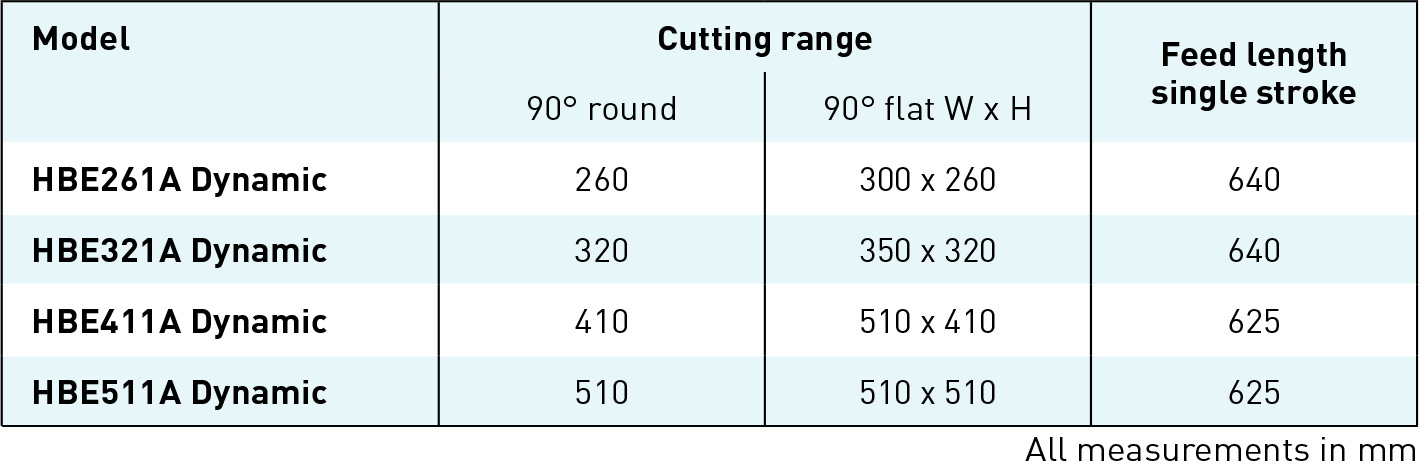

Technical Data

Model HBE261A DynamicHBE321A Dynamic
Cutting range 90° round[mm]260320
Cutting range 90° flat[mm]300 x 260350 x 320
Feeding length single stroke[mm]650650
Saw drive[kW]2,62,6
Blade speed[m/min]15 - 11015 - 110
Saw blade dimension[mm]4.440 x 34 x 1,14.440 x 34 x 1,1
---
Model HBE411A DynamicHBE511A Dynamic
Cutting range 90° round[mm]410510
Cutting range 90° flat[mm]510 x 410510 x 510
Feeding length single stroke[mm]650650
Saw drive[kW]3,85,2
Blade speed[m/min]15 - 11010 - 150
Saw blade dimension[mm]5.730 x 41 x 1,35.730 x 41 x 1,3
Sort by

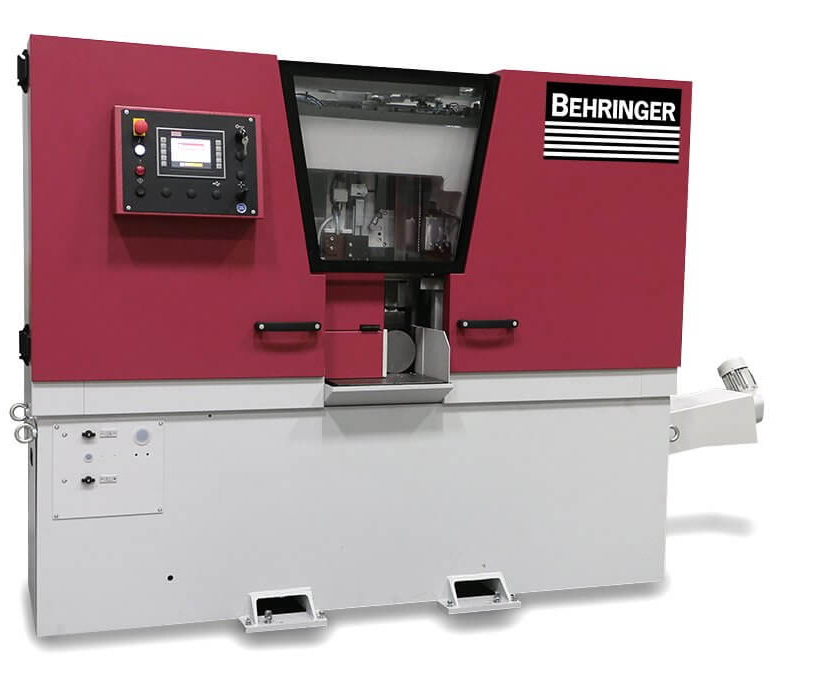

BEHRINGER HBE321A Dynamic

HBE321A
Cutting range 90° round (mm) : 320
Cutting range 90° flat (W x H in mm) : 350x320
The dynamic way of sawing, The new high performance automatic bandsawing machines, the DYNAMIC series, provides performance, ease of use and energy efficiency.

BEHRINGER HBE261A Dynamic

HBE261A
Cutting range 90° round (mm) : 260
Cutting range 90° flat (W x H in mm) : 300x260
The dynamic way of sawing, The new high performance automatic bandsawing machines, the DYNAMIC series, provides performance, ease of use and energy efficiency.

BEHRINGER HBE411A Dynamic

HBE411A
Cutting range 90° round (mm) : 410
Cutting range 90° flat (W x H in mm) : 510x410
The dynamic way of sawing, The new high performance automatic bandsawing machines, the DYNAMIC series, provides performance, ease of use and energy efficiency.

BEHRINGER HBE511A Dynamic

HBE511A
Cutting range 90° round (mm) : 510
Cutting range 90° flat (W x H in mm) : 510x510
The dynamic way of sawing, The new high performance automatic bandsawing machines, the DYNAMIC series, provides performance, ease of use and energy efficiency.
