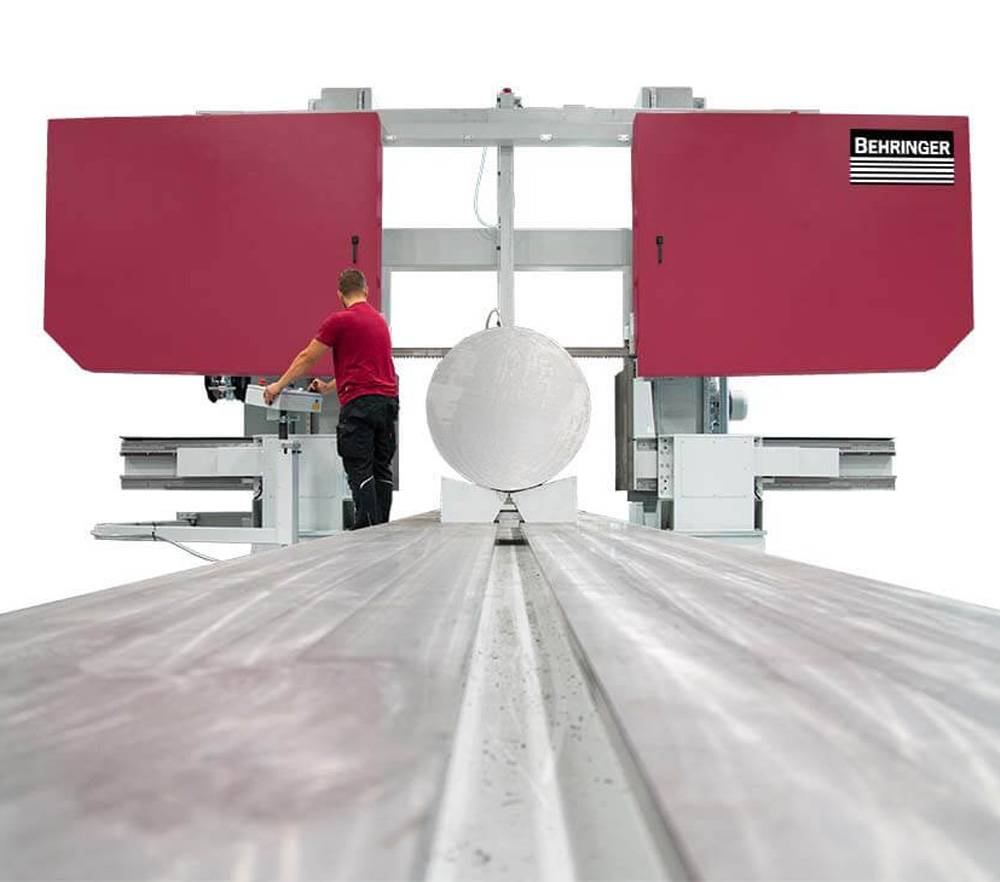

BEHRINGER HBP1100-1800 GANTRY

GANTRY Saw
Cutting range: 1,800 x 1,100 mm
Semi-automatic or automatic operation

Manufacturer: BEHRINGER GmbH

SKU: HBP1100-1800 GANTRY

Product Files

Downloads

BEHRINGER Complete Range

The ultimate cutting machine for cast blocks or freeform forgings

The ultimate cutting machine for cast blocks or freeform forgings – the BEHRINGER GANTRY giants. In forging mills, rolling and gravity die-casting foundries, and steel finishing works, these machines provide the ideal answer for dealing with large dimensions. They are the perfect large bandsaws for preproduction in tool and mold making factories, helping to save valuable milling time. Loading in parallel is thus just as possible as relieving the crane capacity by placing several parts in parallel.

Products specifications

Attribute name	Attribute value
Cutting Range

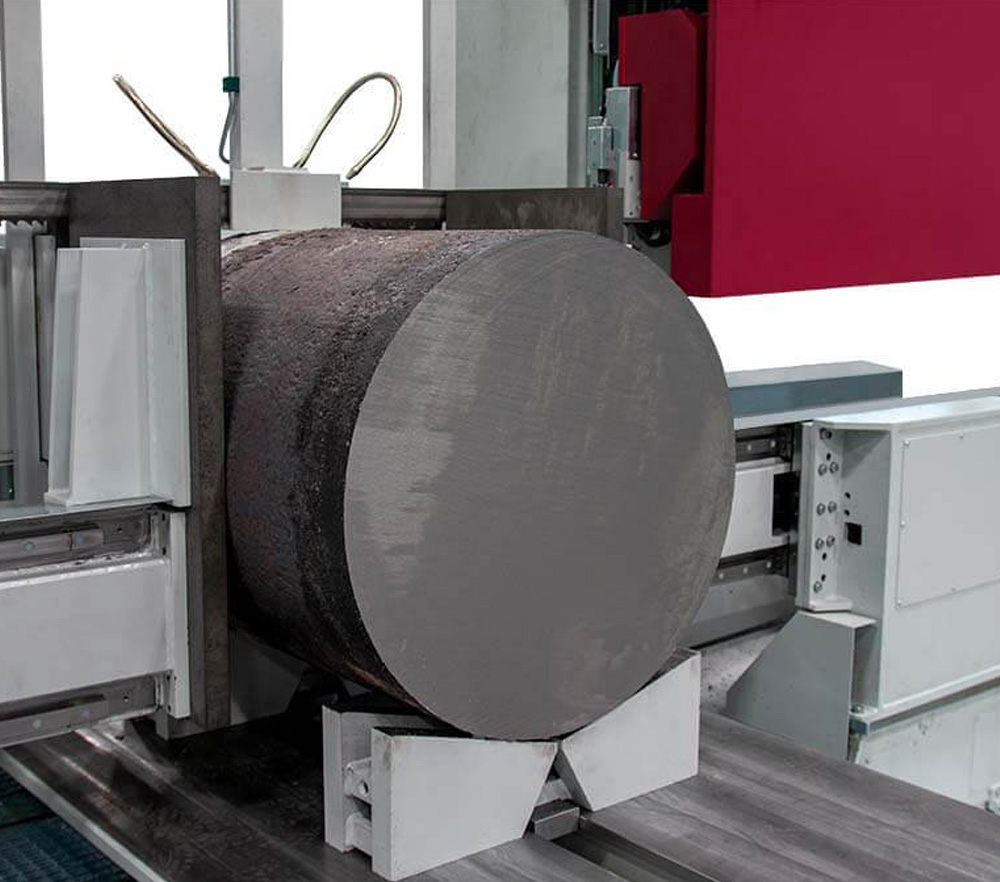

Cutting range 90° round	1,100 mm

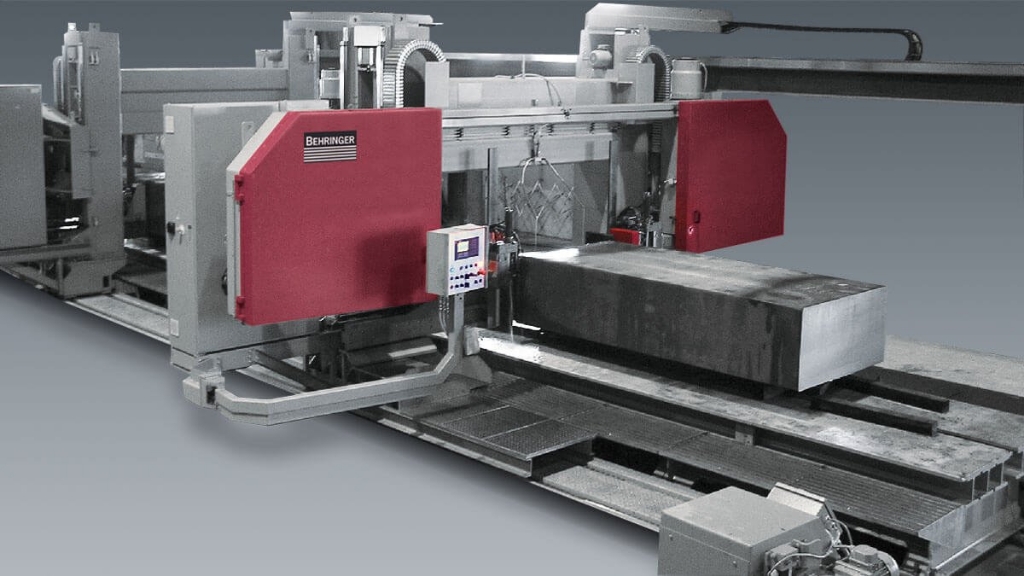

Cutting range 90° flat	1,800 x 1,100 mm
Smallest dimension to be sawn round	400 mm
Smallest dimension to be sawn flat	400 x 50 mm
Performance Characteristics

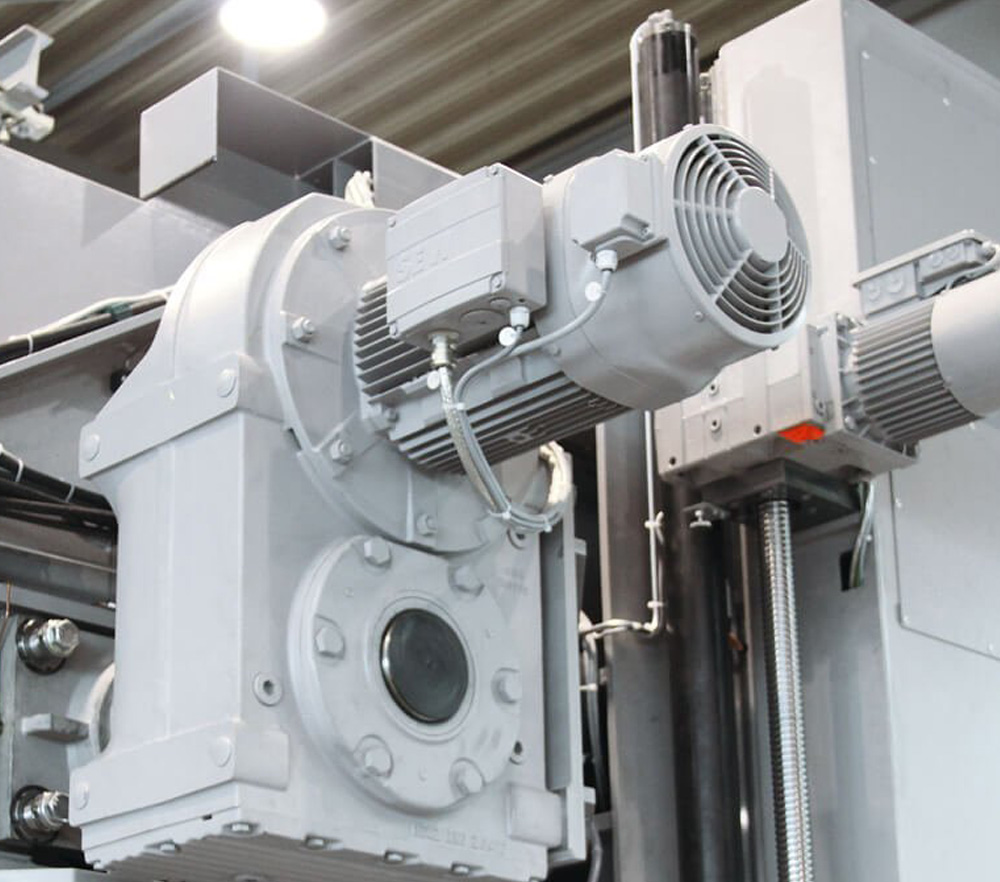

Drive power	15 kW
Blade speed	8 - 84 m/min

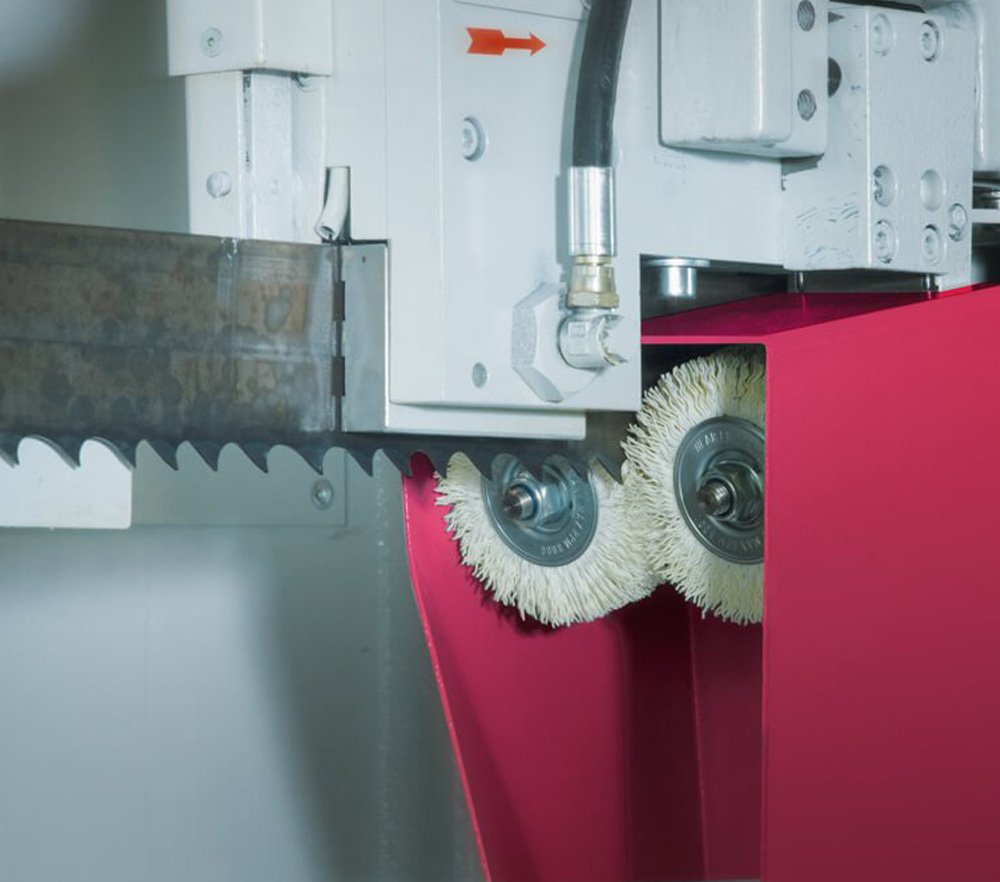

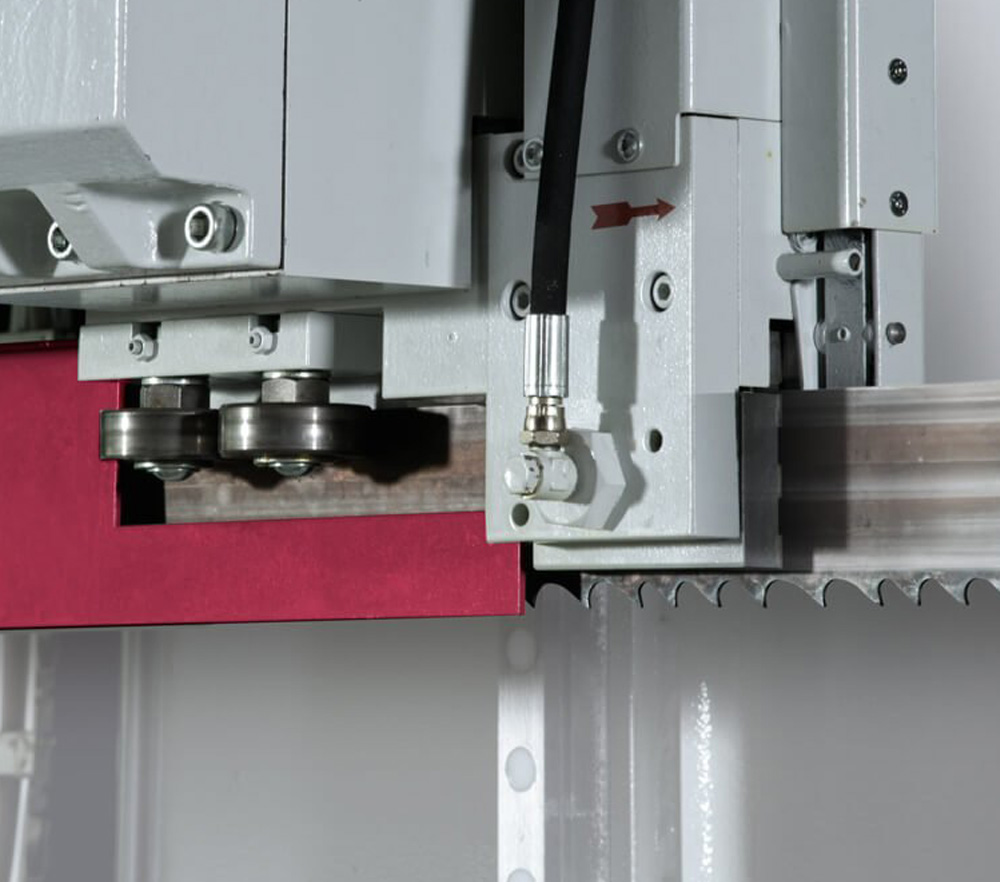

Saw blade dimensions	14,330 x 80 x 1.6 mm
Total power	30 kW
Table size L x W	6,500 x 1,500 mm
Travel way of the portal (horizontal)	5,000 mm
Travel way of the portal (vertical)	1,200 mm
Dimensions and Weight
Lenght	8,000 mm
Width	8,100 mm
Height	3,850 mm
Weight	32,000 kg
