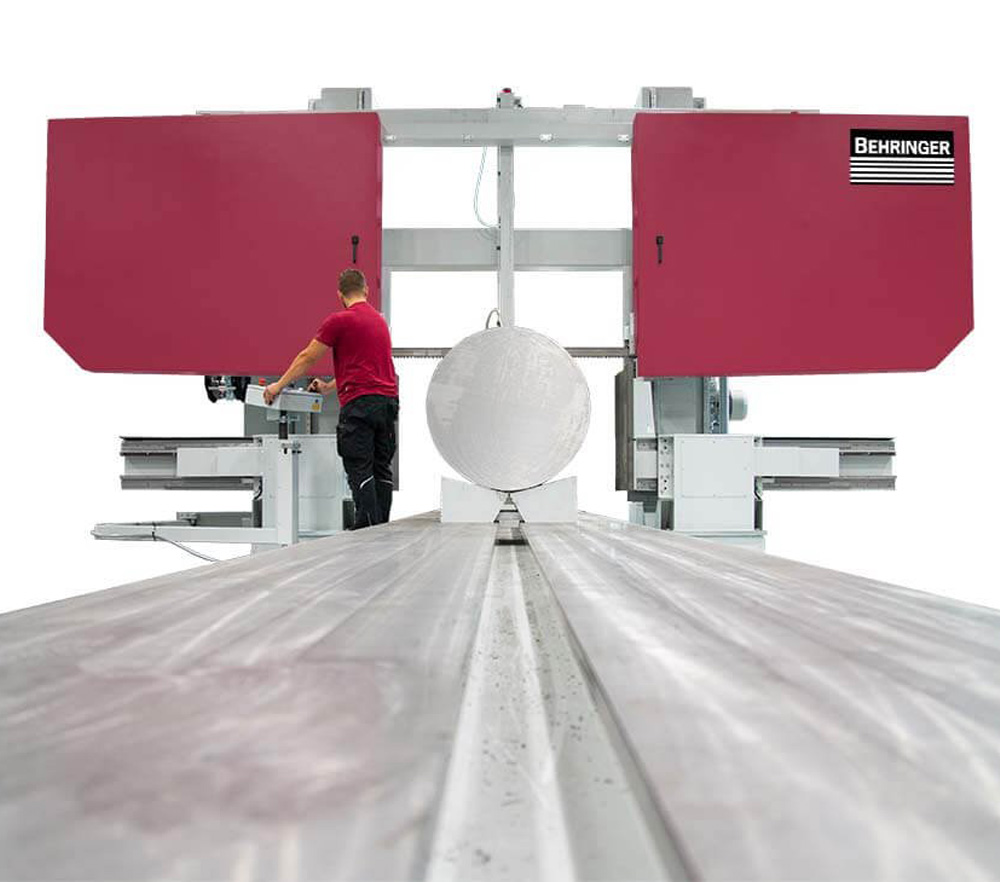

BEHRINGER HBP1100-2100 GANTRY

GANTRY Saw
Cutting range: 2,100 x 1,100 mm
Semi-automatic or automatic operation
Manufacturer: BEHRINGER GmbH
SKU: HBP1100-2100 GANTRY
Contact for quote

The ultimate cutting machine for cast blocks or freeform forgings

The ultimate cutting machine for cast blocks or freeform forgings – the BEHRINGER GANTRY giants. In forging mills, rolling and gravity die-casting foundries, and steel finishing works, these machines provide the ideal answer for dealing with large dimensions. They are the perfect large bandsaws for preproduction in tool and mold making factories, helping to save valuable milling time. Loading in parallel is thus just as possible as relieving the crane capacity by placing several parts in parallel.

Products specifications

Attribute nameAttribute value
Cutting Range
Cutting range 90° round1,100 mm
Cutting range 90° flat2,100 x 1,100 mm
Smallest dimension to be sawn round500 mm
Smallest dimension to be sawn flat500 x 50 mm
Performance Characteristics
Drive power15 kW
Blade speed8 - 84 m/min
Saw blade dimensions14,930 x 80 x 1.6 mm
Total power30 kW
Table size L x W6,500 x 1,800 mm
Travel way of the portal (horizontal)5,000 mm
Travel way of the portal (vertical)1,200 mm
Dimensions and Weight
Lenght8,000 mm
Width8,400 mm
Height3,850 mm
Weight34,000 kg
