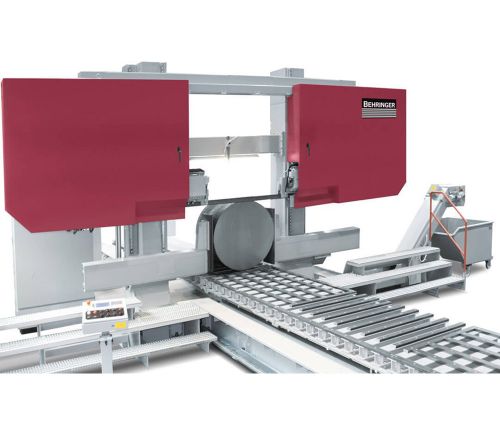

BEHRINGER HBP1100T

TABLE Band Saw
Cutting range: 1,100 x 1,100 mm
Semi-automatic or automatic operation

Manufacturer: BEHRINGER GmbH

SKU: HBP1100T

Product Files

Downloads

BEHRINGER Complete Range

The optimum solution for materials with a wide range of geometries

BEHRINGER horizontal bandsaws in table design are ideal for use in forges, rolling mills and die casting factories, in steel finishing works and for tool and mold making. Their individually traversable material clamping vices and blade guide arms make these ideal for cutting bulky materials. The low table height makes this type of machine ideally suited for use on normal hall floor level.

Products specifications

Attribute name	Attribute value
Cutting Range
Cutting range 90° round	1,100 mm
Cutting range 90° flat	1,100 x 1,100 mm
Smallest dimension to be sawn round	100 mm
Smallest dimension to be sawn flat	100 x 50 mm
Performance Characteristics
Drive power	15 kW
Blade speed	8 - 84 m/min
Saw blade dimensions	12,930 x 80 x 1.6 mm
Total power	30 kW
Table size L x W	3,000 x 1,200 mm
Maximum table load	30,000 kg
Dimensions and Weight
Lenght	6,000 mm
Width	7,400 mm
Height	3,850 mm
Weight	14,000 kg
Material support height	700 mm
