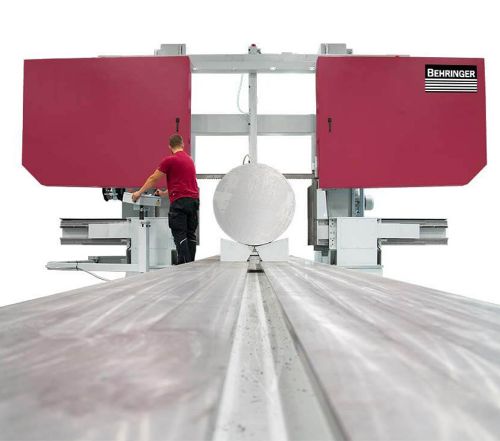

BEHRINGER HBP1800-2100 GANTRY

GANTRY Saw
Cutting range: 2,100 x 1,800 mm
Semi-automatic or automatic operation

Manufacturer: BEHRINGER GmbH

SKU: HBP1800-2100 GANTRY

Product Files

Downloads

BEHRINGER Complete Range

The ultimate cutting machine for cast blocks or freeform forgings

The ultimate cutting machine for cast blocks or freeform forgings – the BEHRINGER GANTRY giants. In forging mills, rolling and gravity die-casting foundries, and steel finishing works, these machines provide the ideal answer for dealing with large dimensions. They are the perfect large bandsaws for preproduction in tool and mold making factories, helping to save valuable milling time. Loading in parallel is thus just as possible as relieving the crane capacity by placing several parts in parallel.

Products specifications

Attribute name	Attribute value
Cutting Range
Cutting range 90° round	1,800 mm
Cutting range 90° flat	2,100 x 1,800 mm
Smallest dimension to be sawn round	500 mm
Smallest dimension to be sawn flat	500 x 50 mm
Performance Characteristics
Drive power	15 kW
Blade speed	8 - 84 m/min
Saw blade dimensions	16,040 x 80 x 1.6 mm
Total power	30 kW
Table size L x W	6,500 x 1,800 mm
Travel way of the portal (horizontal)	5,000 mm
Travel way of the portal (vertical)	1,850 mm
Dimensions and Weight
Lenght	8,000 mm
Width	8,400 mm
Height	5,300 mm
Weight	35,000 kg
