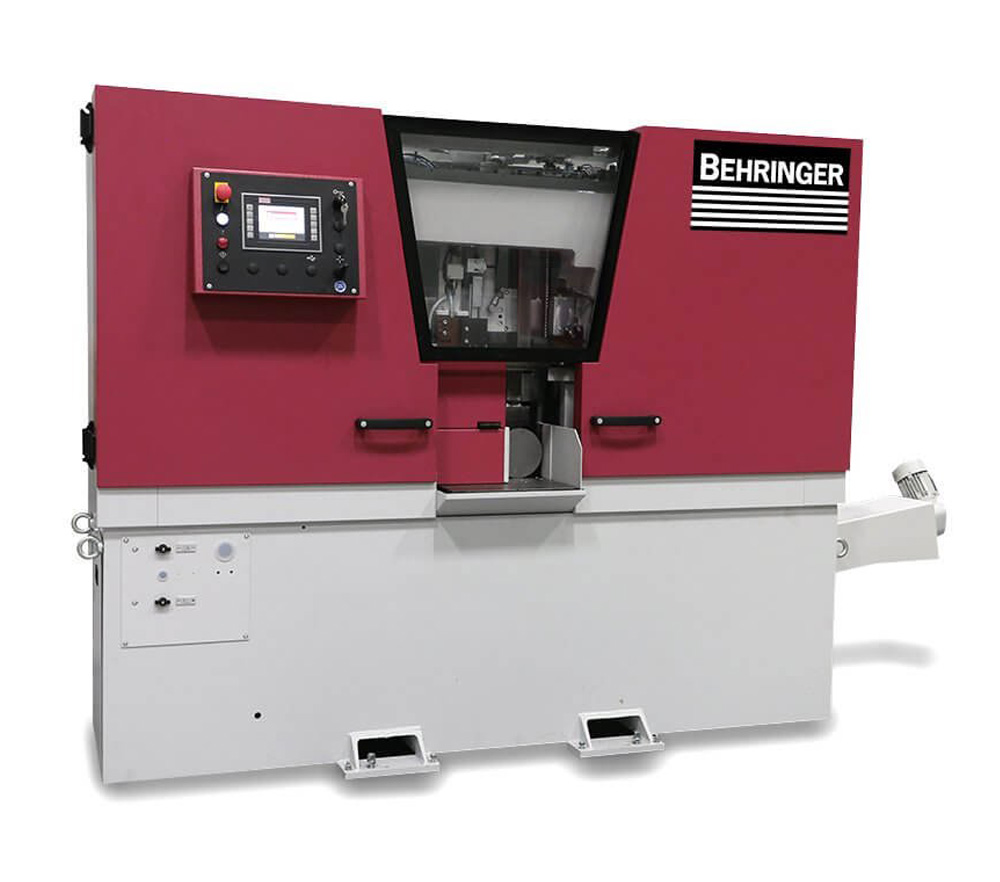

BEHRINGER HBE321A Dynamic

Cutting range 90° round (mm) : 320
Cutting range 90° flat (W x H in mm) : 350x320
The dynamic way of sawing, The new high performance automatic bandsawing machines, the DYNAMIC series, provides performance, ease of use and energy efficiency.

Manufacturer: BEHRINGER GmbH

SKU: HBE321A

Product Files

Downloads

BEHRINGER Complete Range

The automatic bandsaw offers powerful, accurate cuts with low costs per cut

The automatic band saw HBE321A Dynamic from BEHRINGER is designed for economical use in industry and the steel trade. It offers high-performance saw cuts with simultaneously low cutting deviations in easy to difficult-to-machine metals and plastics. In doing so, the band saw covers a wide range of materials from profiles and tubes to solid material. Thanks to its wide-opening full enclosure, the automatic band saw HBE321A Dynamic offers uncompromising work protection combined with good accessibility. Its low energy consumption contributes to resource-saving production.

Products specifications

Attribute name	Attribute value
Cutting Range
Cutting range 90° round	320 mm
Cutting range 90° flat	350 x 320 mm
Smallest dimension to be sawn round	10 mm
Smallest dimension to be sawn flat	10 x 8 mm
Performance Characteristics
Feeding length single stroke	650 mm
Drive power	2.6 kW
Blade speed	15 - 110 m/min
Saw blade dimensions	4,440 x 34 x 1.1 mm
Total power	3.7 kW

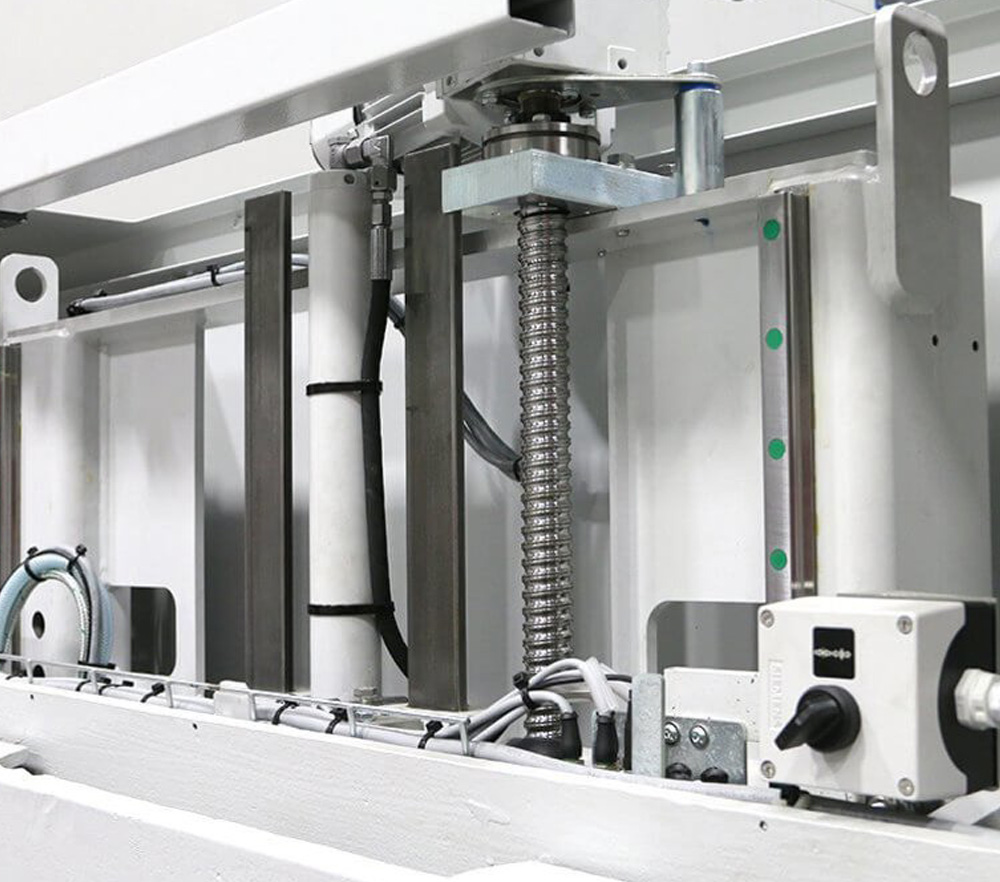

Saw feed	servo-feed via ball screw
Material feed	ball screw
Material clamping	hydraulic
Dimensions and Weight
Lenght	1,850 mm
Width	2,300 mm
Height	1,820 mm
Weight	1,900 kg
Material support height	800 mm
