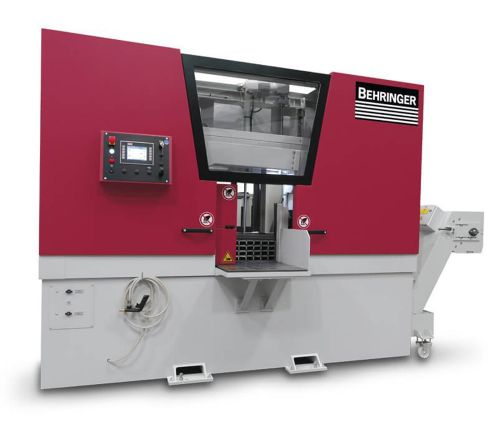

Picture of BEHRINGER HBE411A Dynamic
BEHRINGER Bandsåg HBE411A
BEHRINGER Bandsåg cast iron saw frame
bandsåg, band såg, bandsåga, behringer bandsåg, bandsåg sverige, metallkap, kapa metall, bandsåg metall, kapa bandsåg
bandsåg, band såg, bandsåga, behringer bandsåg, bandsåg sverige, metallkap, kapa metall, bandsåg metall, kapa bandsåg

BEHRINGER HBE411A Dynamic

Cutting range 90° round (mm) : 410
Cutting range 90° flat (W x H in mm) : 510x410
Manufacturer: BEHRINGER GmbH
SKU: HBE411A
Product Files
Downloads

The automatic band saw HBE411A Dynamic from BEHRINGER is designed for economical use in industry and the steel trade. It offers high-performance saw cuts with simultaneously low cutting deviations in easy to difficult-to-machine metals and plastics. In doing so, the band saw covers a wide range of materials from profiles and tubes to solid material. Thanks to its wide-opening full enclosure, the automatic band saw HBE411A Dynamic offers uncompromising work protection combined with good accessibility. Its low energy consumption contributes to resource-saving production.

Products specifications
Attribute nameAttribute value
Saw blade dimension (mm)5.730x41x1,3
Rest piece length in automatic operation80 mm
Blade speed (m/min)15-110
Power of saw drive (kW) - frequency regulated3,8
Material support height (mm)800
Weight approx. (kg)3200
Saw feedServo-feed via ball screw
Cutting range 90° round [mm]410
Cutting range 90° flat [W x H in mm]510x410
Material feeding length (mm)640
CNC-Program ControlsBT65 (Standard)
Sawblade bias 1°Standard
Automatic band guide adjustmentStandard
