BEHRINGER HBE663A Performance

Cutting range 90° round (mm) : 660
Cutting range 90° flat (W x H in mm) : 710x660

Manufacturer: BEHRINGER GmbH

SKU: HBE663A

Product Files

Downloads

BEHRINGER Complete Range

Maximum performance for solids and bundles!

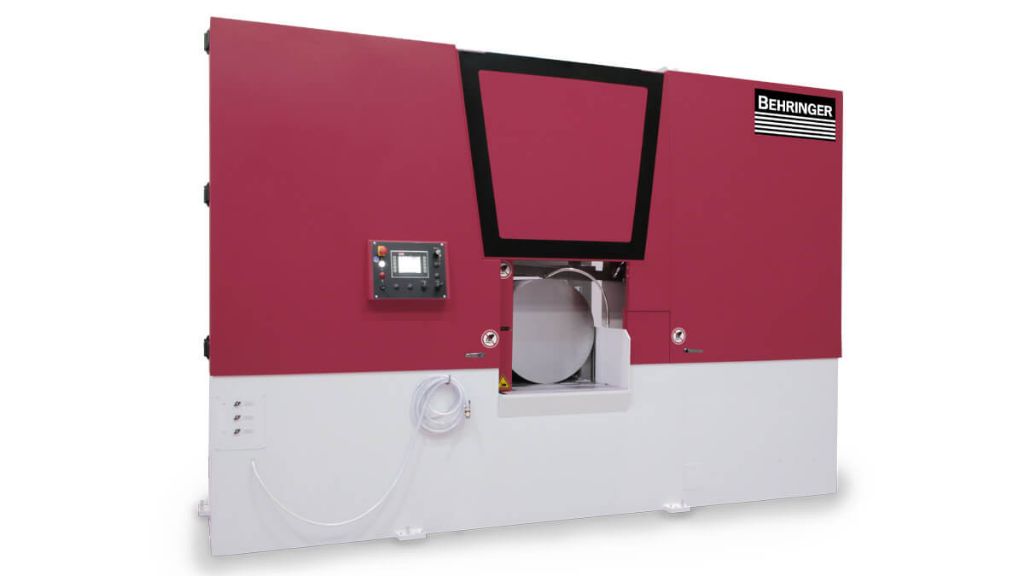

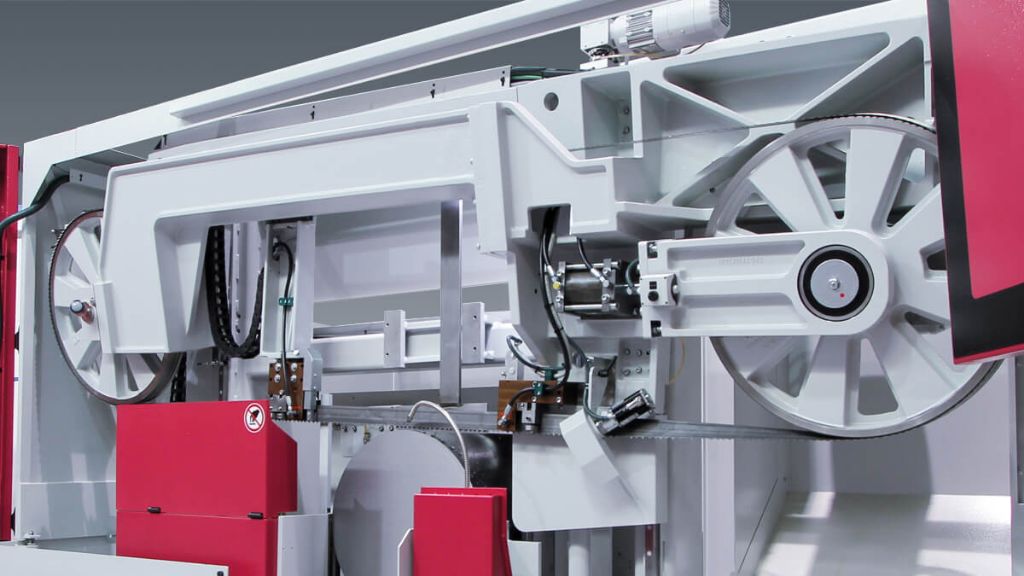

The automatic saw HBE663A Performance is the specialist of the HBE Performance series for sawing material bundles. Due to its double vice and the retracting fixed jaws, even strapped bundles can be positioned precisely. In combination with the robust vertical clamping devices, the bundle is securely clamped during sawing. The industrial saw's feeding gripper can be configured in lengths of 1,500 mm and 3,000 mm for sawing long cut-off lengths.

Products specifications

Attribute name	Attribute value
Saw blade dimension (mm)	8.750x54x1,6
Power of saw drive (kW) - frequency regulated	7,5
Blade speed (m/min)	10-110
Rest piece length in automatic operation	50 mm
Material support height (mm)	800
Weight approx. (kg)	6500
Material feeding length (mm)	540

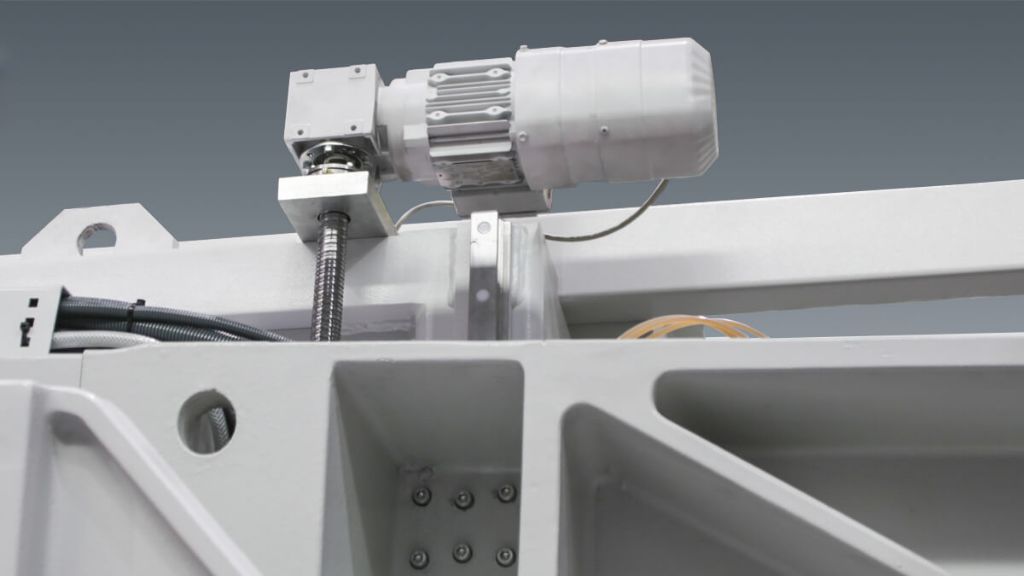

Saw feed	Servo-feed via ball screw
Cutting range 90° round [mm]	660
Cutting range 90° flat [W x H in mm]	710x660
CNC-Program Controls	BT65 (Standard)
Sawblade bias 1°	Standard
Automatic band guide adjustment	Standard
