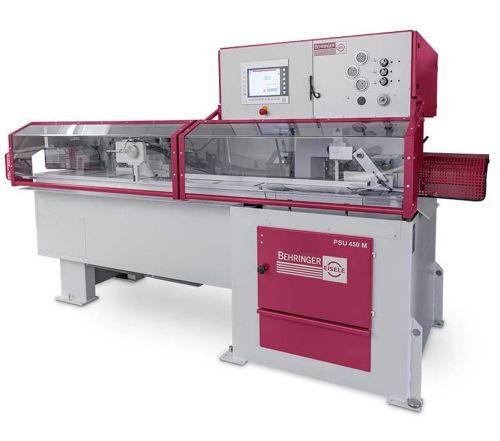

BEHRINGER EISELE PSU 450 M

Automatic Mitre Circular Saw
Cutting range: 240 x 70 mm
Saw blade Ø 450 mm

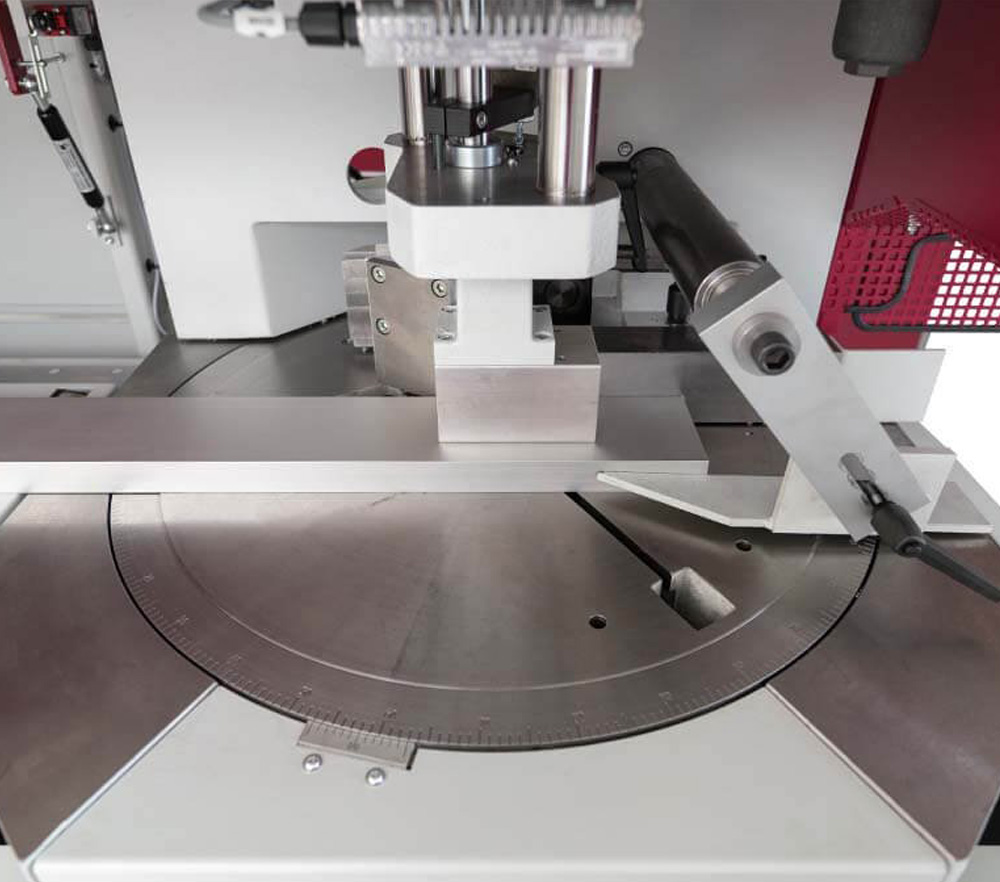

90° up to 30° mitre angle

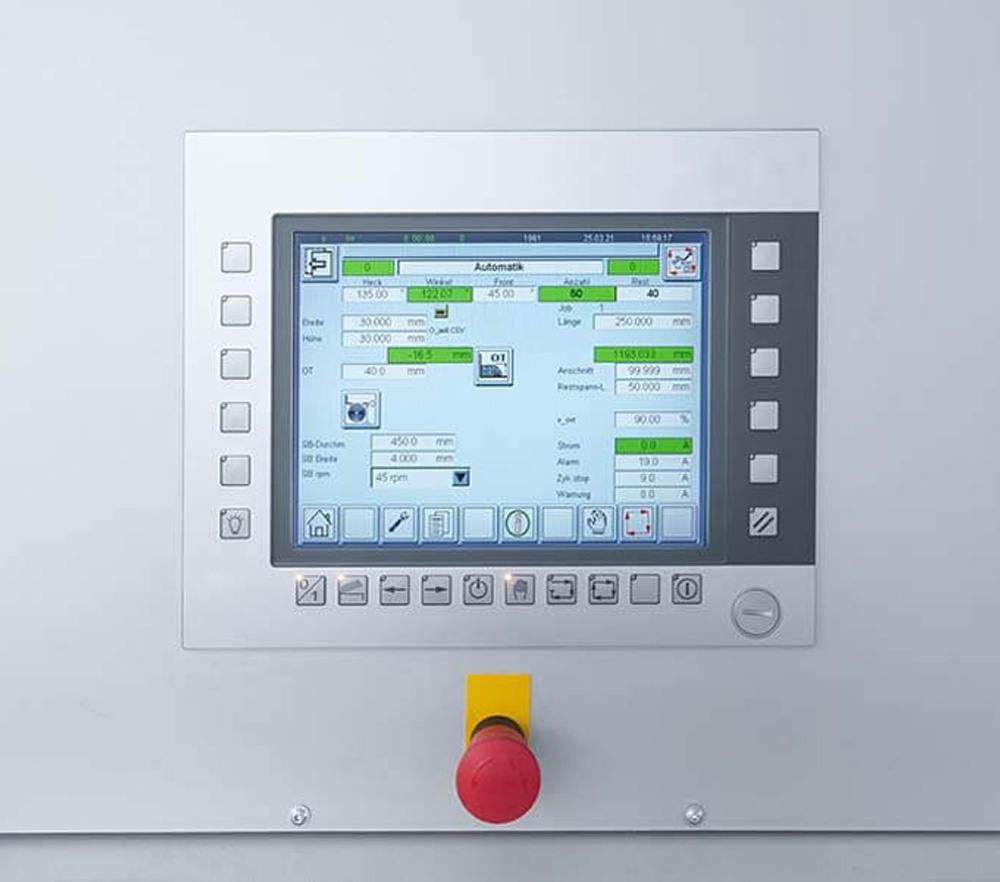

Automatic operation
Manufacturer: BEHRINGER EISELE GmbH
SKU: PSU 450 M
Product Files

Provides precise mitre cuts in various industry and workhops

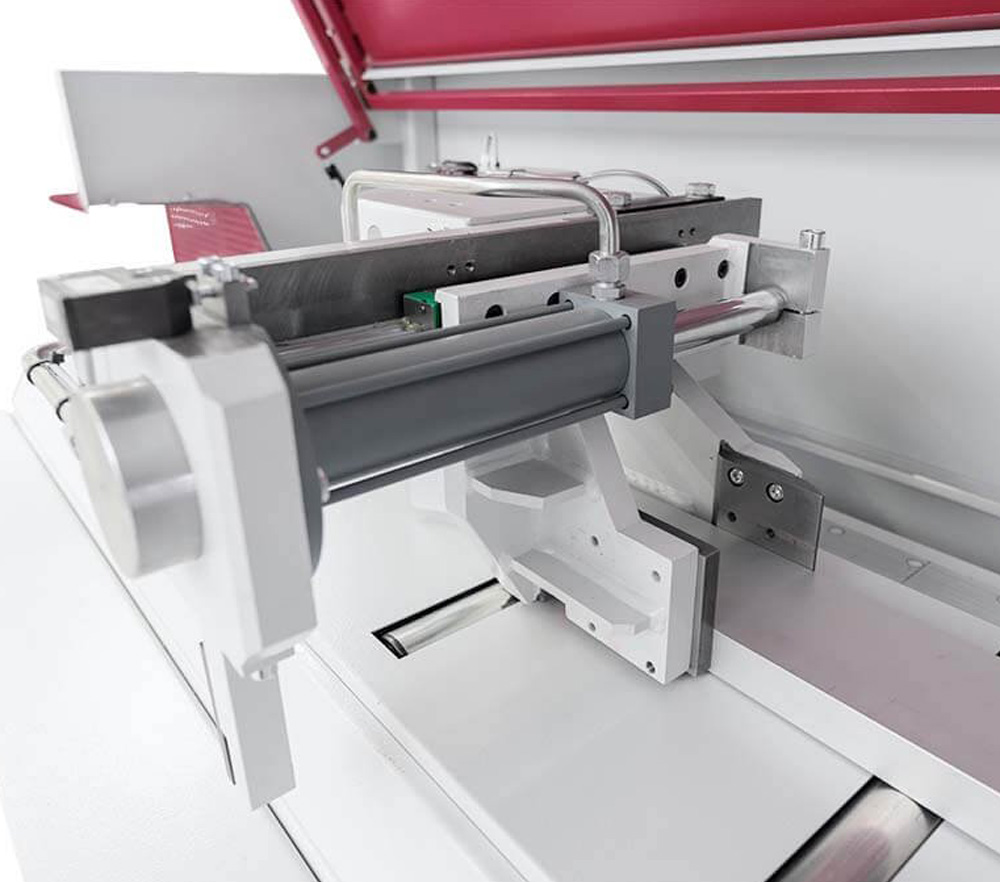

The automatic mitre circular saw PSU 450 M is a true all-rounder for cutting tubes, profiles, solids and angles. Impressive features include its high output, process reliability and simple handling. Its automatic mitre adjustment and servo motor-driven feed gripper make for extreme flexibility in this outstanding saw machine concept. Its modular structure allows the PSU 450 M to be combined with infeed magazines or disposal devices.

The heart of the PSU mitre saw unit is the worm gear unit with EISELE shock-absorbing feature, produced in-house. It is heavy duty and provides for a smooth, low-vibration running of the saw, which, of course, has a positive impact on the quality of the cutting surface and the blade life.




 Technical Data

Model  PSU 450 M
convenience package
Cutting range
Flat90°[mm]220 x 70
Flat45°[mm]180 x 50
Flat30°[mm]120 x 50
Square90°[mm]10 - 140
Square45°[mm]10 - 125
Square30°[mm]10 - 100
Rund90°[mm]10 - 150
Round45°[mm]10 - 145
Round30°[mm]10 - 120
Saw blade diameter[mm]450
Drive power[kW]3,0 / 3,61]
RPM standard[min-1]6 / 12 / 24 / 48
RPM optional[min-1]12 / 24 / 48 / 96
RPM optional kw[min-1]6 - 401]
Feeding length single stroke[mm]1500
Feeding rate[mm/s]500
Weight approx.[kg]2350

1] PSU 450 M with convenience package - 7,1 kW
