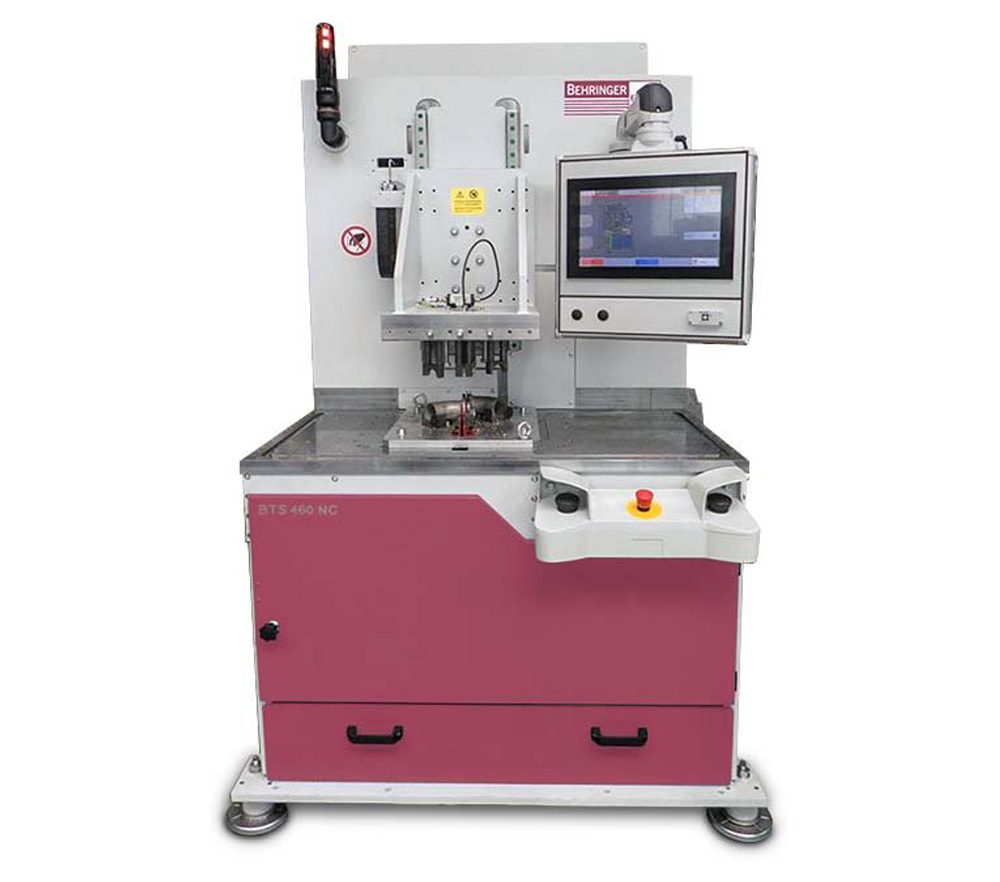

BEHRINGER EISELE BTS 460 NC

Tube Cutting Saw
Cutting range: Ø 165 mm
Saw blade Ø 460 mm
Mounting for part-specific fixtures
Simple integration into complete systems
Manufacturer: BEHRINGER EISELE GmbH
SKU: BTS 460 NC
Product Files

High speed sawing of bent tubes with carbide blades

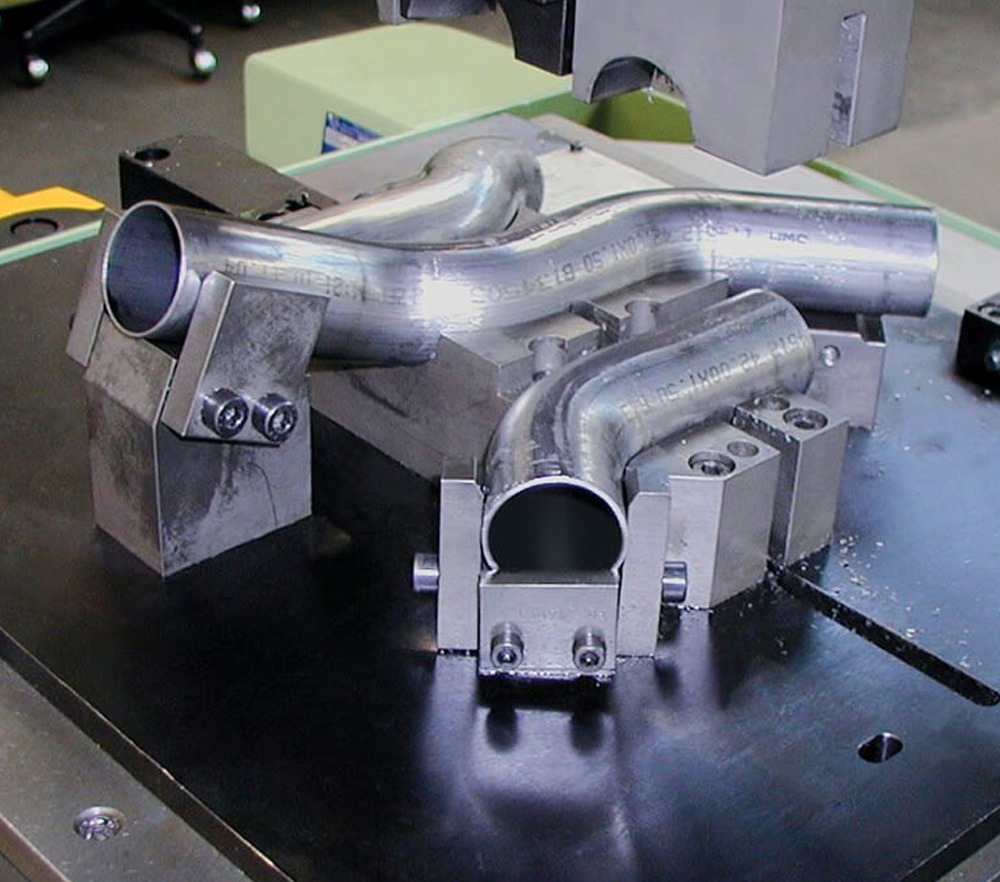

The BTS 460 NC is a carbide circular saw specially designed for sawing curved tubes such as mufflers, hydroforming or exhaust pipes. Standardised mounts and their flat material table enable individual workpiece fixtures to be accepted. The saw entry and exit point can be freely adjusted accordingly. The standard two-hand operation allows comfortable and safe working without disturbing mechanical guards. The heart of the BTS 460 NC is the high-performance sawing unit from the HCS series and powerful servo axes for saw feed and material clamping. This overall concept offers a powerful and low-vibration sawing process, which ensures a good cutting surface, long saw blade life and a long service life of the saw.

Products specifications
Attribute nameAttribute value
Cutting Range
Cutting range round10 - 165 mm
Performance Characteristics
Drive power11 kW
RPM10 - 280 min-1
Saw blade diameter350 - 460 mm
Saw feed servo driven
Material clampingservo driven
Dimensions and Weight
Lenght1,465 mm
Width1,400 mm
Height2,230 mm
Weight2,500 kg
Material support height1,000 mm
