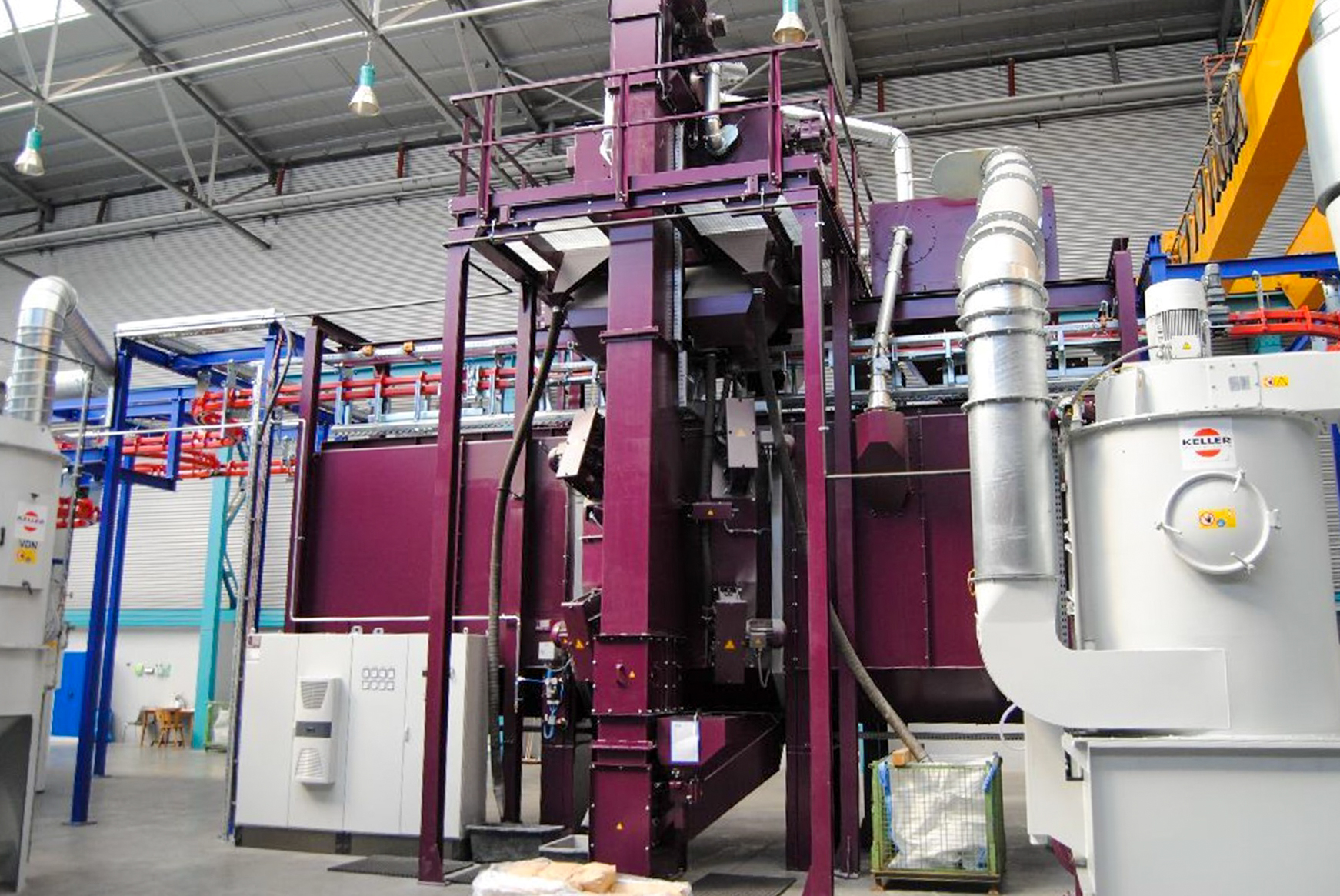

Continuous overhead conveyor blast machine

Technical Data

	Machine No	181174
	OEM	AGTOS
	Type	Continuous overhead conveyor blast machine
	NameDHT 05-15-3.6-08-07,5	BS 10-05-3.6-04-07,5
	Turbines	8 Turbine with 7.5 kW
	Volume	7500 m³/h
	Age	2012
	Type filter	Dry dedusting system
	Other details	Characteristics of the installed filter system Residual dust content with secondary filter: ≤ 2 mg/Nm³ Characteristics of the blasting system Blasting media (material and size): Steel abrasive Abrasive quantity (initial filling): 5 tonnes Workpiece material: Steel Max. Workpiece length: 1400 mm Passage width: 500 mm Passage height: 1500 mm Sound pressure level without sound insulation: ≤ 85 dB(A)
