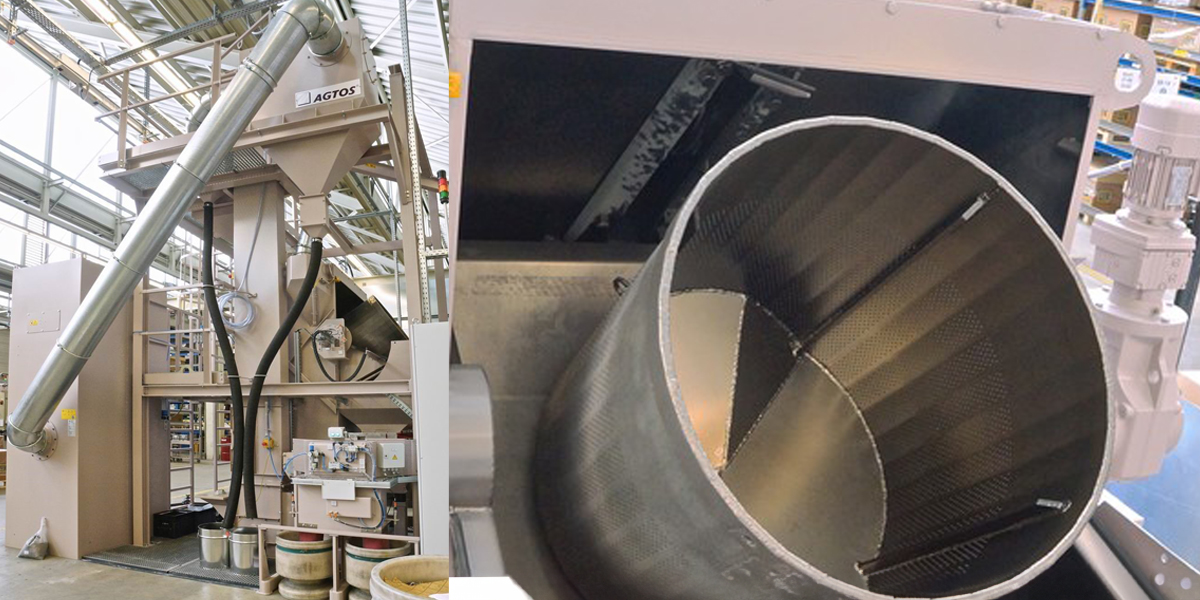

Tumble blasting system

Technical Data

	Machine No	181199
	OEM	AGTOS
	Type	Tumble blasting system
	NameDHT 05-15-3.6-08-07,5	TS 150-3.6-01-15,0
	Turbines	1 turbine with 15.0 kW
	Volume	3000 m³/h
	Weight workp. total	ca. 1000 kg
	Type filter	Sinter disc filter
	Other details	Characteristics of the installed filter system Residual dust content: ≤ 1 mg/Nm³ Characteristics of the blasting system Blasting media (material and size): Wire grit Blasting abrasive quantity (initial filling): approx. 1000 kg Workpiece temperature: max. 80°C Drum length: 900 mm Drum diameter: 800 mm Max. Drum load: 250 kg Max. Single piece weight: 5 kg Capacity: 150 litres Max. Feeder lifting capacity: 480 kg Sound pressure level without sound insulation: ≤ 85 dB(A)
