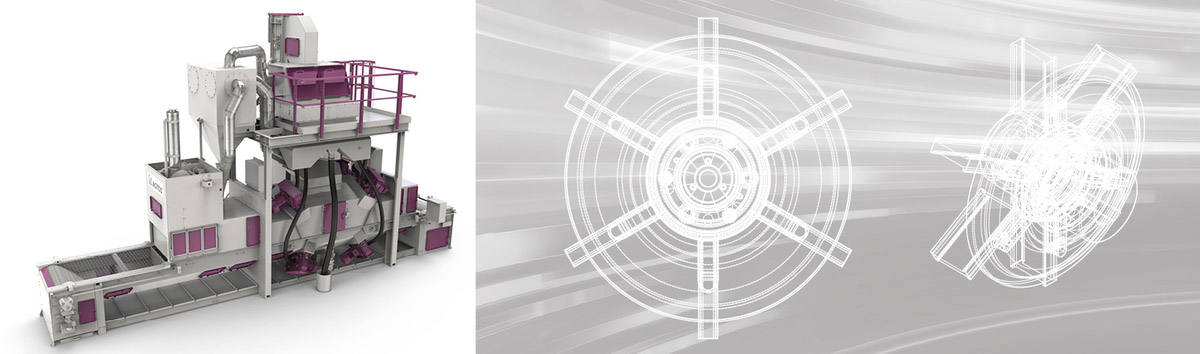

Wire mesh conveyor shot blast machine

The AGTOS Product Range

We offer our standard program of wire mesh conveyor shot blast machines in processing widths ranging from 400 mm to 1600 mm.
The choice of the appropriate machine concept depends on your work pieces, the required level of performance and ­ last but not least on your specific needs regarding an optimized production process.
In the event that a standard model does not meet your surface preparation needs, we will develop a tailor-made blast machine concept for you.
Our team of experts welcomes your detailed questions and looks forward to helping you!


The work pieces first activate a switching threshold positioned in front of the blasting area’s entry vestibule. This automatically releases abrasive to the already running high-performance turbines. This ensures that blasting takes place only when work pieces are actually in the blasting zone.

The entry vestibule is equipped with wear-resistant rubber curtains that prevent the escape of abrasive. After passing through the blasting zone, work pieces enter a blow-off zone. Excess abrasive remaining on the work piece surfaces is removed and returned to the abrasive process loop.

The blasting abrasive is continuously cleaned, recirculated and reused. An abrasive metering device feeds the cleaned abrasive from the abrasive storage bunker to the high-performance turbines.

A fan unit creates the partial vacuum necessary to maintain dust-free operation of the blasting unit. Extracted air is cleaned in a special filter unit.

Capabilities and applications

Wire mesh conveyor shot blast machines are very flexible in their application. The fact that work pieces can be blasted simultaneously from above and below considerably increases the spectrum of work pieces that can be treated. Wire mesh conveyor shot blast machines are used for, among other things, de-burring, de-scaling and cleaning of castings and laser-cut parts.




Product data sheet
