VERNET BEHRINGER HDL

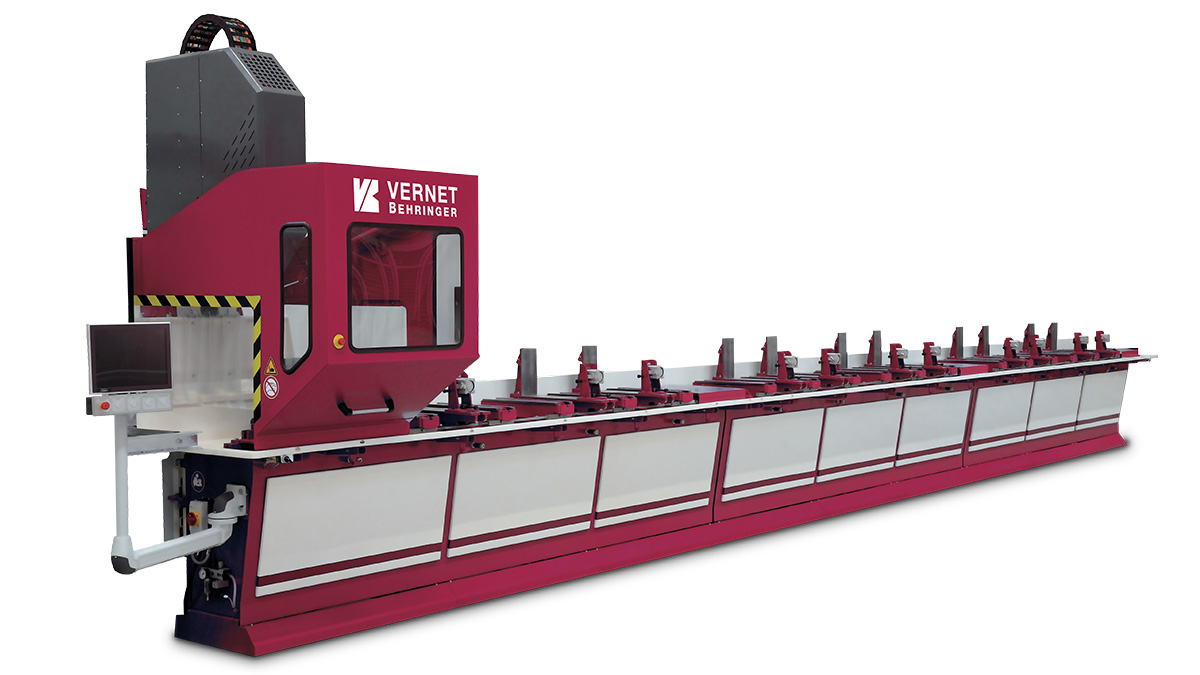

HDL – Mono-spindle Profile Drilling Machine

The ideal solution for light metal fabricating workshops

The Vernet Behringer HDL provides efficient profile machining with drilling, milling, marking, and tapping in one compact system. Manual measuring, tracing, and scribing are eliminated through direct CAD/DSTV import and CNC positioning. While the machine operates, the next program can be prepared in parallel (pendulum mode).

The HDL integrates fast and silent layout marking with the exclusive V-scoring system – markings remain clear even after painting or galvanising and no compressed air is required. Secure clamping with repositionable pneumatic clamps enables precise milling operations. The user-friendly software suite allows powerful import and easy programming with full 3D visualisation.

• Reduce production time
  Eliminate manual steps – import DSTV files directly from CAD and let the machine position and process H-beams, channels, angles, hollow sections, and plates automatically.
• Efficient pendulum mode
  Unload finished parts and stage the next while machining continues – significantly reducing non-productive time.
• Travelling tool changer
  Optional 10-station tool changer for shorter machining and changeover times.
• Fast V-scoring marking
  Extremely fast, low noise, low cost – markings remain visible even after coating or galvanising.
• Powerful CNC control
  User-friendly programming with 3D view for clear part visualisation.
• Flexible clamping
  Interchangeable jaws with quick-change system, pneumatic clamping units switched centrally, and adjustable widths via locking rail.

Video

Individual Configuration

The HDL can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.
