BEHRINGER HBE663A Performance

Kapkapacitet 90° rund (mm): 660
Kapkapacitet 90° platt (B x H i mm): 710x660

Tillverkare: BEHRINGER GmbH

Artikelnr: HBE663A

Product Files

Downloads

BEHRINGER Complete Range

Maximum performance for solids and bundles!

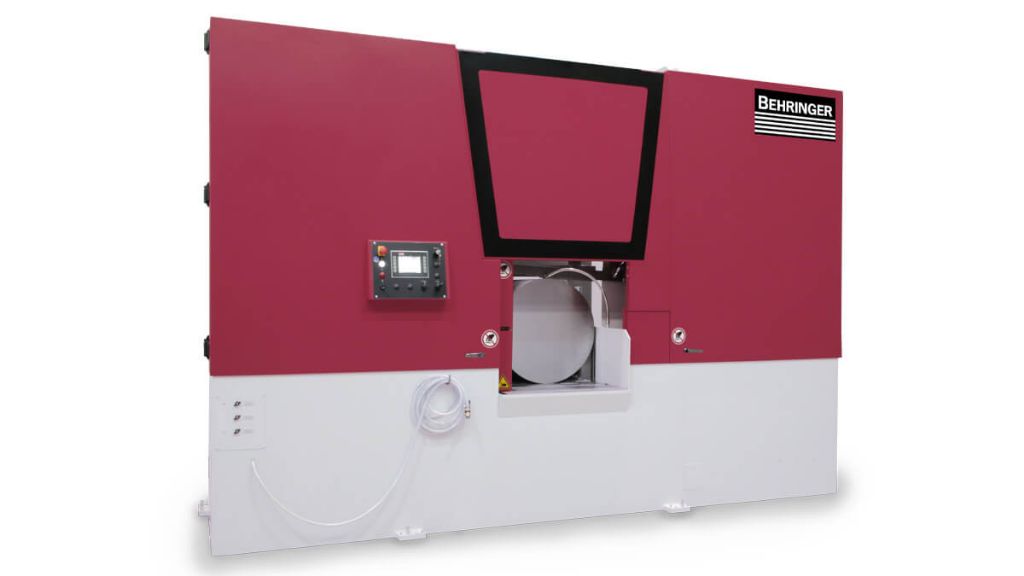

The automatic saw HBE663A Performance is the specialist of the HBE Performance series for sawing material bundles. Due to its double vice and the retracting fixed jaws, even strapped bundles can be positioned precisely. In combination with the robust vertical clamping devices, the bundle is securely clamped during sawing. The industrial saw's feeding gripper can be configured in lengths of 1,500 mm and 3,000 mm for sawing long cut-off lengths.

Specifikationer

Attribute name	Attribute value
Sågbladsstorlek	8.750x54x1,6
Motoreffekt såg (kW), frekvensstyrd	7,5
Sågbladshastighet (m/min)	10-110
Restbit vid automatisk drift	50 mm
Material support höjd (mm)	800
Vikt (kg)	6500
Matningslängd (mm)	540

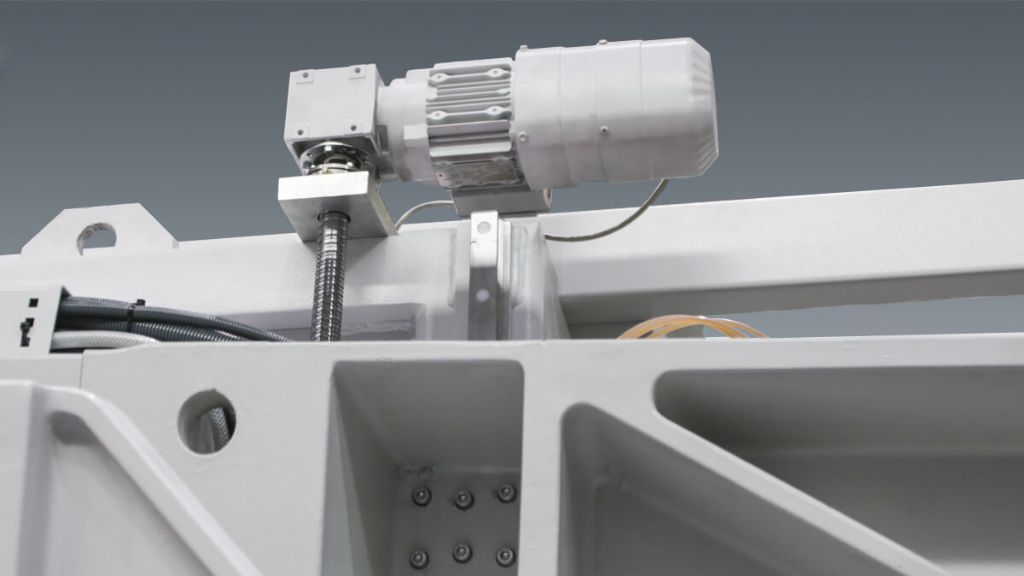

Nedmatning sågram	Servostyrd
Kapkapacitet 90° runt [mm]	660
Kapkapacitet 90° platt [B x H i mm]	710x660

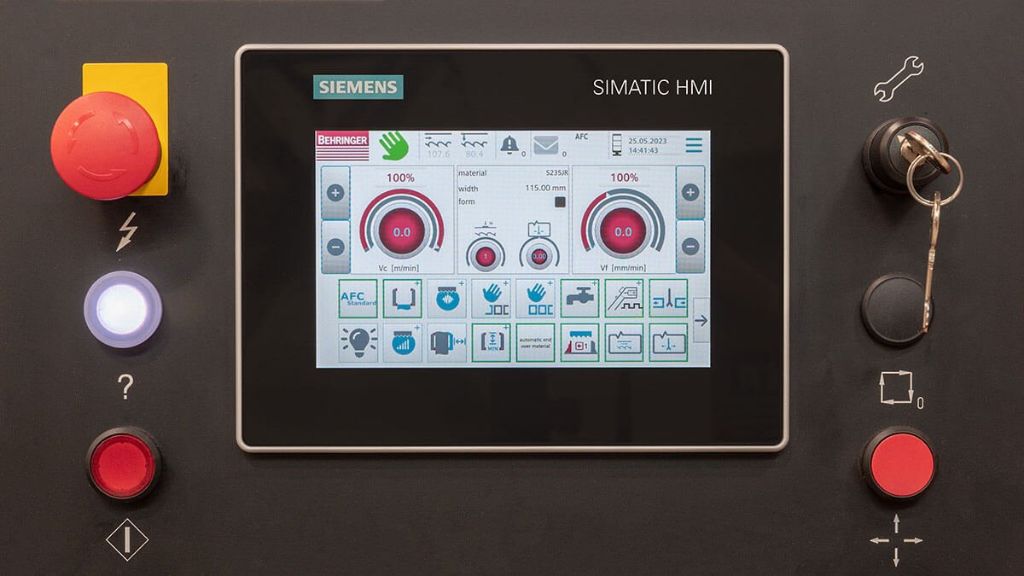

CNC-Program	BT65 (Standard)
Lutning sågblad 1°	Standard
Automatisk bandjustering	Standard
