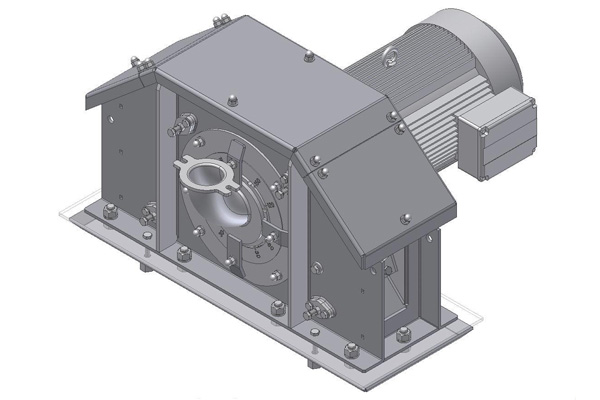

AGTOS Single-disc blasting wheel 4.6

Product description

This aggregate is, like the smaller variant, a single-disc blasting wheel with six insertable blades. We offer these high-performance turbines with a blasting wheel diameter of 420, 440 and 460 mm. Motors from 18.5 to 37.0 kW provide the drive mechanism. In case a drive with bearing block is used instead of a direct drive, stronger drives are possible.

The AGTOS-high-performance turbine 4.6 can process blasting abrasive with a diameter of up to 3.5 mm. It is primarily used to remove sand from cast parts as well as when there are large distances between turbines and large work pieces.

The advantage of single-disc blasting wheels lies in the fact that fewer parts subject to wear are present than in double disc wheels. This means less work required for assembly and lower costs for maintenance and repairs. We will be glad to explain the difference to you in detail.

The blades are inserted in the carrier disc from the middle. An additional clamping disc covers the insertion opening and arrests the blades.

All internal parts of the turbines such as blades, impeller, conduit sleeve and the discs are made of wear-resistant material. Different variants are available and can be selected to match your use case.

The turbine housing consists of wear-resistant manganese steel and is protected from the inside by additional replaceable plates of a similarly wear-resistant material.

The most important wear parts of the blasting wheel can be removed either through the removable cover on the turbine housing or through the assembly opening on the side of the turbine housing. This saves assembly effort and costs.

The favourable flow characteristics of our AGTOS-high-performance turbines assure a high through put of blasting abrasive and with it outstanding blasting results. The Hot Spot, the surface being bombarded with blasting abrasive, is long and evenly thick, which produces the best blasting results.

AGTOS high-performance turbines are not just mounted on new machines. To date, after retrofitting of existing shot-blasting machines with the AGTOS-system, improvements in blasting performance have always been achieved.
