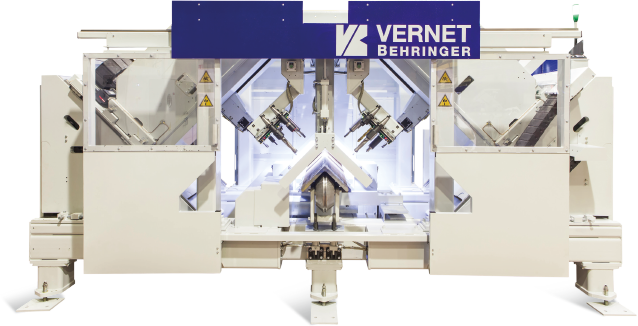

VERNET BEHRINGER VP-2X



VP-2X



High performance angle drilling-milling line

Multi-purpose machine with hard-stamping, V-scoring fast scribing, high speed drilling and milling, shearing and sawing combinations for angles from 40 x 4 mm up to 350 x 40 mm

Unique design on the market for angle processing in ^ position, with drilling spindles above the angle  › Best angle clamping and rigidity for vibration free high speed drilling › Easy collection of chips and coolant

Additional x-axes with 500 mm stroke on both drilling units

  • Highest productivity : units move around the angle saving clamping/unclamping times
  • CNC Control of the clmaps position to give both the required space fot notching and the optimal rigidity
  • Excellent precision between holes +/- 0,1mm spindle positioning
  • V-scoring fast scribing for layout marking
  • Flange milling of any shape (square, 45°…)
  • Heel milling

User friendly software suite for easy part import and programming with 3D display

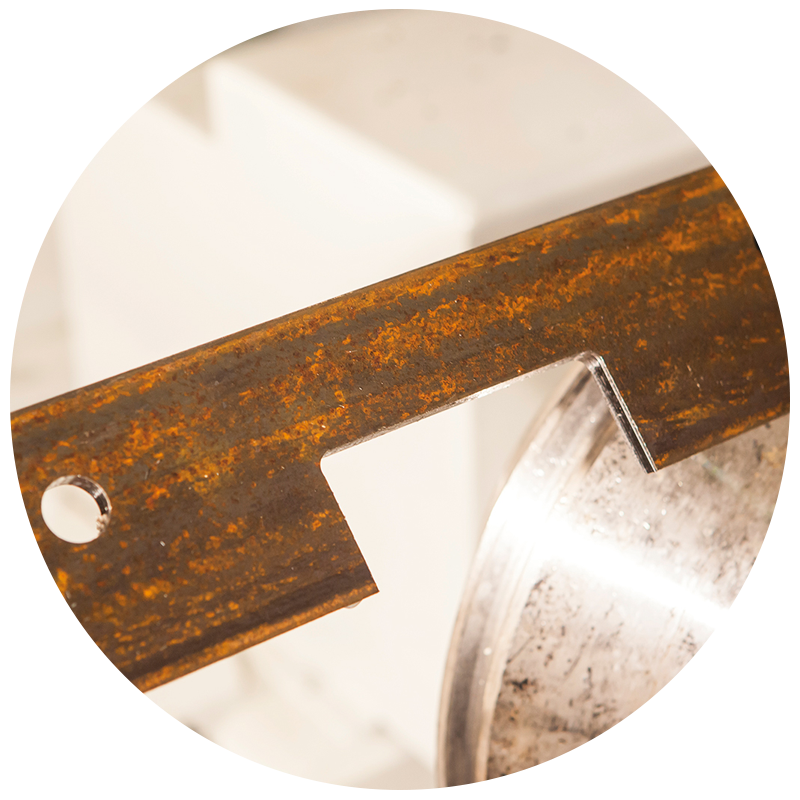

Notching by milling

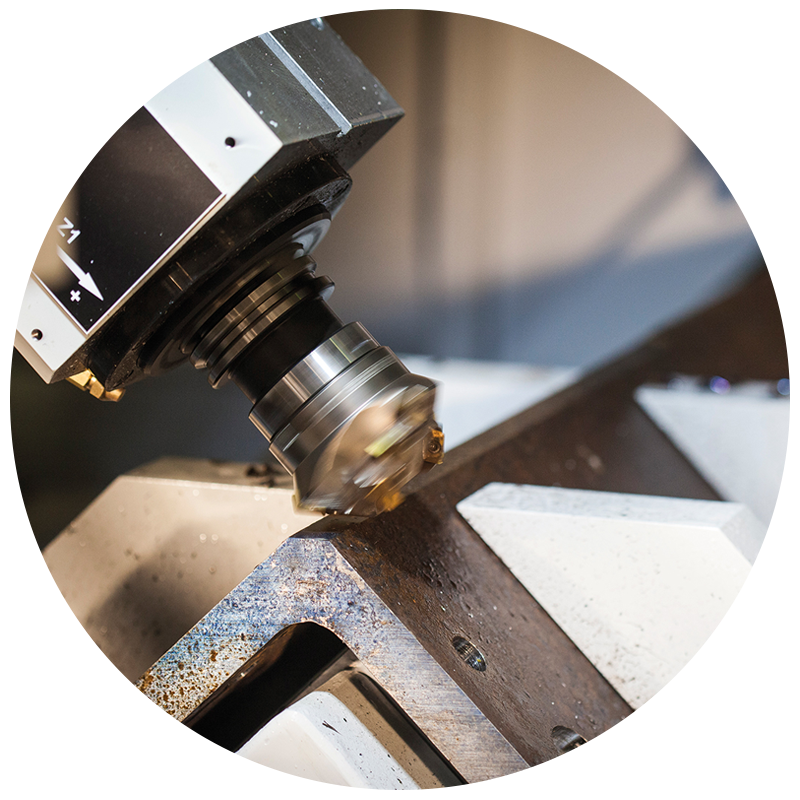

High speed heel milling

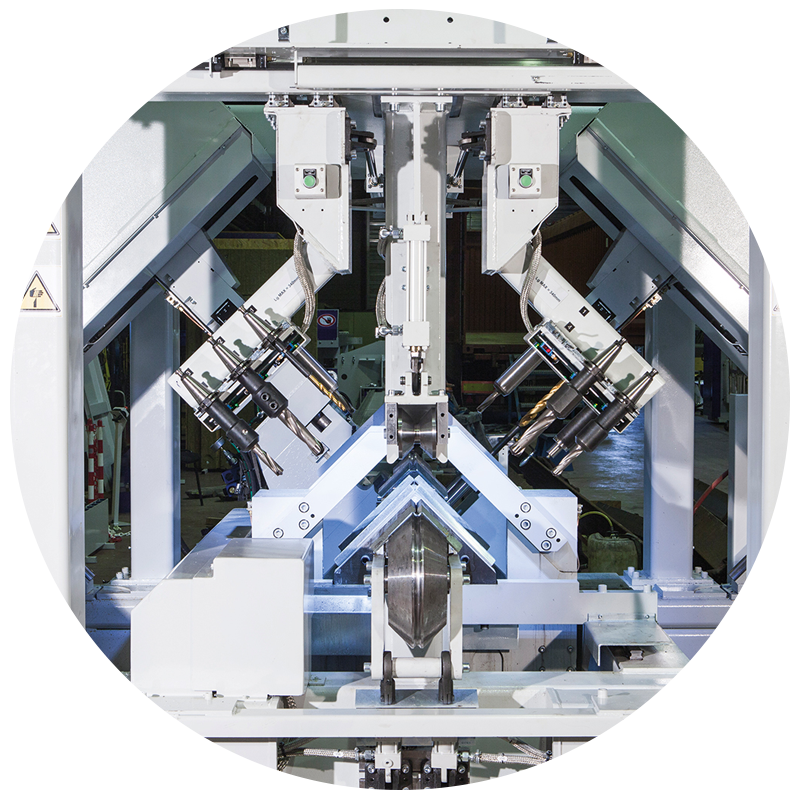

VP-2X drilling-milling unit with 500
mm spindle stroke in x-axis

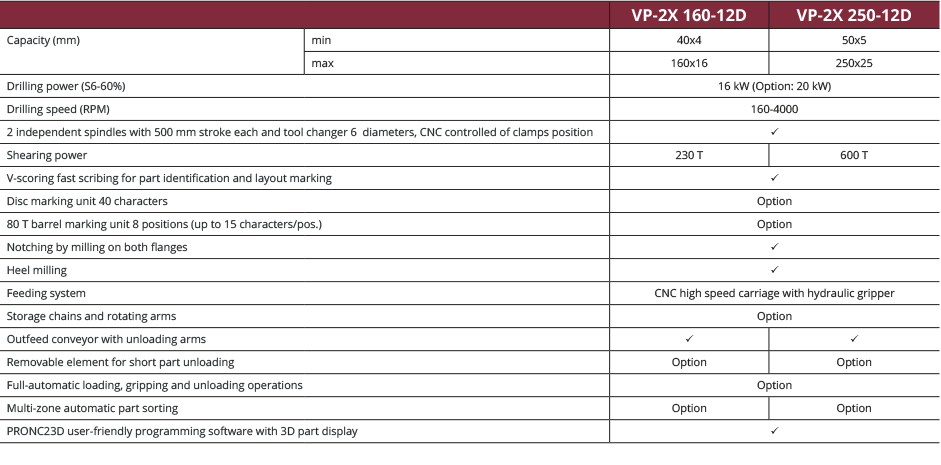

Specifications VP-2X
